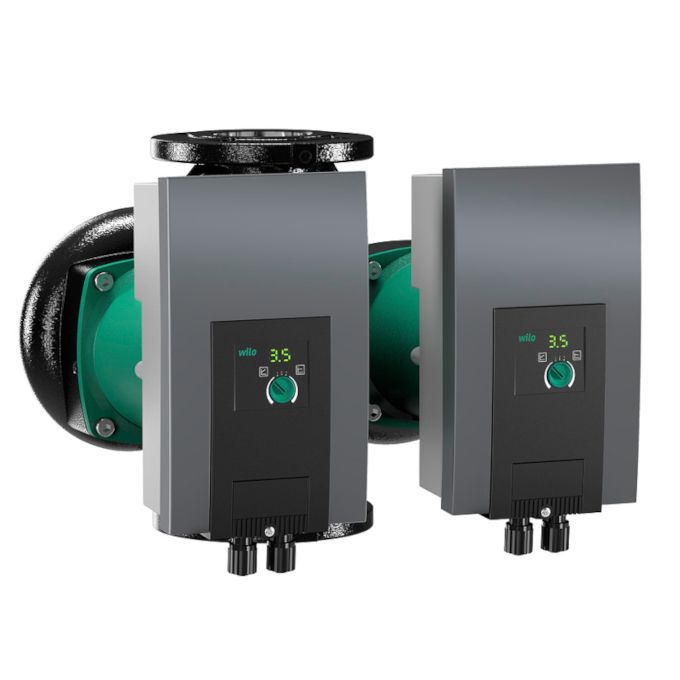

Wilo Yonos Maxo-D 40/0.5-12 PN6/10 Circulator Pump - 230v - Single Phase - 250mm
This item is now obsolete. Please view our alternatives below.
Free Delivery Over £50
1 year warranty With This Product
Construction
Glandless circulator with flange connection, EC motor with automatic power adjustment
Application
Hot-water heating systems of all kinds, air-conditioning systems, closed cooling circuits, industrial circulation systems.
Equipment/function
Operating modes
- Δp-c for constant differential pressure
- Δp-v for variable differential pressure
Manual functions
- Setting the operating mode
- Setting of pump output (delivery head)
Automatic functions
- Infinitely variable power adjustment according to the operating mode
- Deblocking function
- Soft start
- Integrated full motor protection
Signal and display functions
- Collective fault signal (potential-free NC contact)
- Fault signal light
- LED segment display for displaying the delivery head and fault codes
Twin-head pump function
- Main/standby operation: for an automatic fault-actuated switchover, a corresponding switchgear must be provided on-site.
- Predefined control mode and set delivery head must be identical for both pumps.
Equipment
- Wrench attachment point on pump body (for threaded pipe union pumps)
- Quick electrical connection with Wilo plug. For the connection of the mains and SSM lines, with integrated strain relief
- For flange-end pumps: Flange versions
- Standard version for pumps DN 32 to DN 65: Combination flange PN 6/10 (flange PN 16 acc. to EN 1092-2) for counter flanges PN 6 and PN 16
- Standard version for DN 80/DN 100 pumps: PN 6 flange (designed for PN 16 according to EN 1092-2) for PN 6 counter flange
| Price | £2,111.34 |
|---|---|
| Manufacturer | Wilo |
| Warranty | 1 year warranty |
| Bars | 10 bar |
| Electrical supply | 230V |
| AC Power | Single Phase |
| Max Head | 12m |
| Water type | Clean or Discoloured |
| Pump Type | Circulator Pump |
| Duty Type | Domestic |
| Submersible vs Surface Mounted | Surface Mounted |
| Next Day Delivery | No |
| Port To Port | 250mm |
| Manufacturers Part Number | 2120665 |
