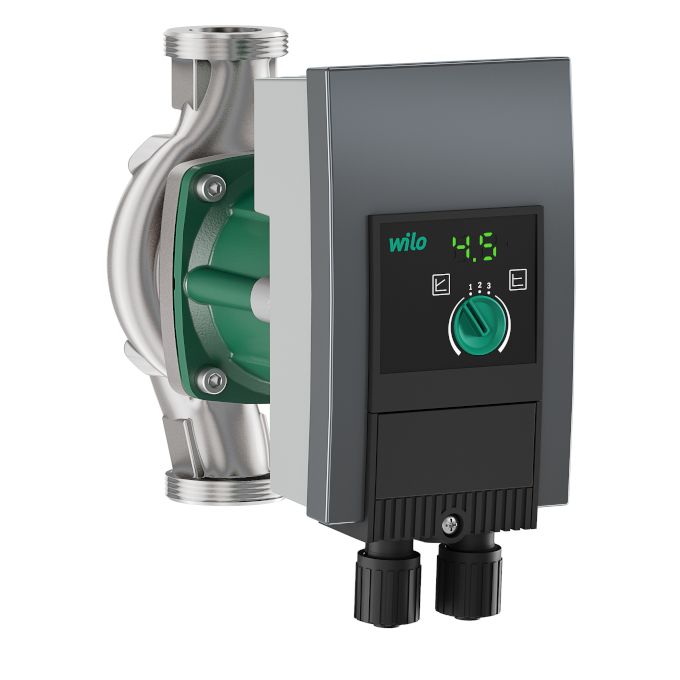

Wilo Yonos Maxo-Z 30/0,5-7 PN10 Circulator Pump - 230v - Single Phase - 136 Ltr/min
This item is now obsolete. Please view our alternatives below.
Free Delivery Over £50
1 year warranty With This Product
High-efficiency central heating pump Wilo-Yonos MAXO-Z
electronically controlled,
Glandless circulator, synchronous motor according to ECM technology and integrated power control for continuous differential pressure control. Can be used for all domestic hot water circulation systems in industry and building services.
Standard-equipped with:
- Preselectable control modes for optimum load adjustment: Δp-c (constant differential pressure), Δp-v (variable differential pressure)
- 3 speed stages (n = constant)
- LED for setting the setpoint and displaying error messages
- Electrical connection with the Wilo plug
- Fault signal light and contact for collective fault signal
For flange-end pumps - flange versions:
- Standard version for DN 32 to DN 65 pumps: Combination flange PN 6/10 (flange PN 16 in accordance with EN 1092-2) for counter flanges PN 6 and PN 10
| Price | £898.92 |
|---|---|
| Manufacturer | Wilo |
| Warranty | 1 year warranty |
| Bars | 10 bar |
| Electrical supply | 230V |
| AC Power | Single Phase |
| Flow Rate | 136 Ltr/min |
| Max Head | 7.4m |
| Water type | Clean or Discoloured |
| Pump Type | Circulating Pump |
| Duty Type | Commercial |
| Submersible vs Surface Mounted | Surface Mounted |
| Inlet Connection | G 2 |
| Outlet Connection | G 2 |
| Next Day Delivery | No |
| Port To Port | 180mm |
| Manufacturers Part Number | 2175540 |
