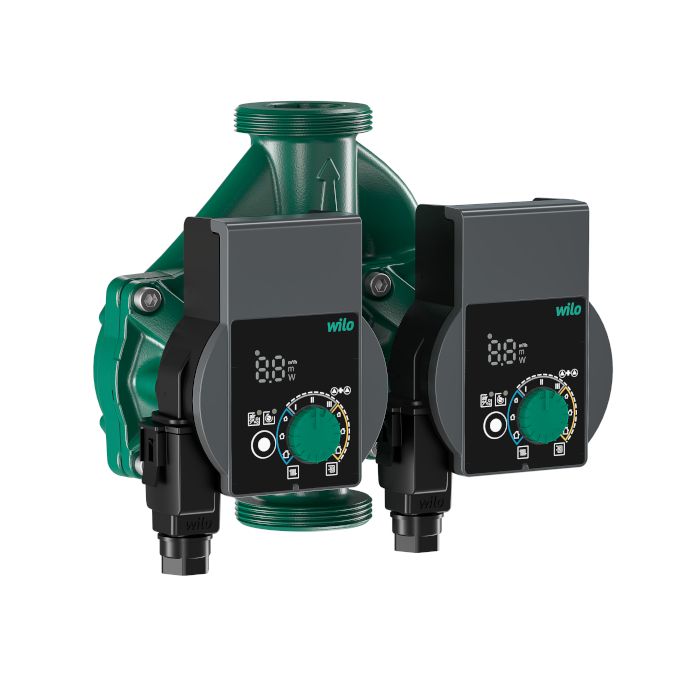

Wilo Yonos PICO-D 30/1-6 Circulating Pump - 230v - Single Phase - 180m

Part Number:
WIL-4230948
This item is now obsolete. Please view our alternatives below.
£1,408.80 RRP £1,141.13 £950.94

Free Delivery Over £50

Glandless circulation double pump with screwed connection, blocking-current proof EC motor and integrated electronic power control.
1 year warranty With This Product

High-efficiency pump WILO-Yonos PICO-D, electronically controlled. Glandless twin-head pump with screwed connection, blocking-current proof synchronous motor according to ECM technology and built-in electronic performance control for variable differential pressure control. Can be used for all heating and air-conditioning applications. Control mode can be selected in accordance with the radiator/underfloor heating application.



Each pump can be operated in individual operation (main/standby operation) or both pumps can be operated at the same time in parallel operation (parallel/peak-load operation). For an automatic fault-actuated switchover, a corresponding switchgear must be provided on-site.



Standard-equipped with:

  • Preselectable control modes for optimum load adjustment: Differential pressure constant (Δp-c), differential pressure variable (Δp-v), constant speed (3 pump curves)
  • Integrated motor protection
  • LED for setting the setpoint, displaying the current consumption in watts and the flow rate in m³/h
  • Automatic deblocking function
  • Manual pump venting function for venting the rotor chamber
  • Manual restart
More Information
Price £950.94
Manufacturer Wilo
Warranty 1 year warranty
Bars 10 bar
Electrical supply 230V
AC Power Single Phase
Water type Clean or Discoloured
Pump Type Circulating Pump
Duty Type Domestic
Submersible vs Surface Mounted Surface Mounted
Inlet Connection G 2
Outlet Connection G 2
Next Day Delivery No
Port To Port 180mm
Manufacturers Part Number 4230948
