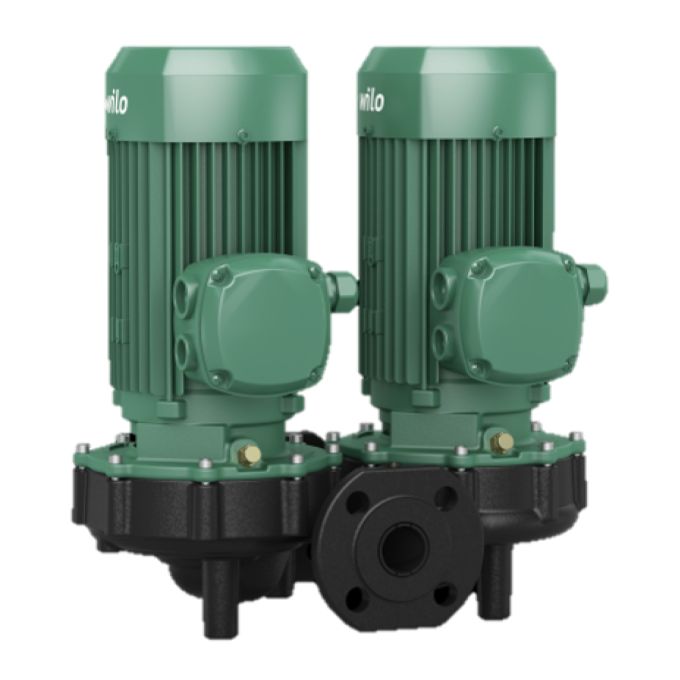

Wilo VeroTwin DPL 40/120-1,5/2 Centrifugal Pump - 1.50kW
![136 136](https://www.pumpsalesdirect.co.uk/media/amasty/shopby/option_images/slider/Wilo_Logo.jpg)
Free Delivery Over £50
Single-stage, low-pressure twin-head pump in in-line design with switchover valve, mechanical seal, flange connection with pressure measuring connection R 1/8 and motor with one-piece shaft.
Buy the VeroTwin DPL range from Pump Sales Direct and recieve free standard delivery.
Type key
Example |
DPL 40/160‐4/2 |
DPL |
In-line twin-head pump |
40 |
Nominal diameter DN of the pipe connection |
160 |
Nominal impeller diameter |
4 |
Nominal motor power P2 in kW |
2 |
Number of poles |
Technical data
- Permissible temperature range -20 °C to +120 °C
- Mains connection 3~400 V, 50 Hz (others on request)
- Protection class IP 55
- Nominal diameter DN 32 to DN 100
- Max. operating pressure 10 bar (special version: 16 bar)
Your advantages
- Reduction of space required and installation costs due to twin-head pump design
- Main/standby mode or peak-load operation (by means of external auxiliary device)
- High standard of corrosion protection thanks to cataphoretic coating
- Series design: motor with one-piece shaft
- Version N: standard motor B5 or V1 with stainless steel plug shaft
Materials
- Pump housing and lantern: EN-GJL-250
- Impeller: PP fibreglass-reinforced /EN-GJL-200 (depending on pump type)
- Shaft: 1.4021
- Mechanical seal: AQ1EGG; other mechanical seals on request
Price | £1,697.52 |
---|---|
Manufacturer | Wilo |
Warranty | 1 year warranty |
Bars | 10 bar |
Impeller Type | Twin |
Electrical supply | 400V |
AC Power | Three Phase |
Flow Rate | 2900 Ltr/min |
Max Head | 18.4m |
Water type | Clean or Discoloured |
Switch | None |
Duty Type | Commercial |
Submersible vs Surface Mounted | Surface Mounted |
Pump Type | Centrifugal Pump |
Next Day Delivery | No |
Manufacturers Part Number | 2121244 |
