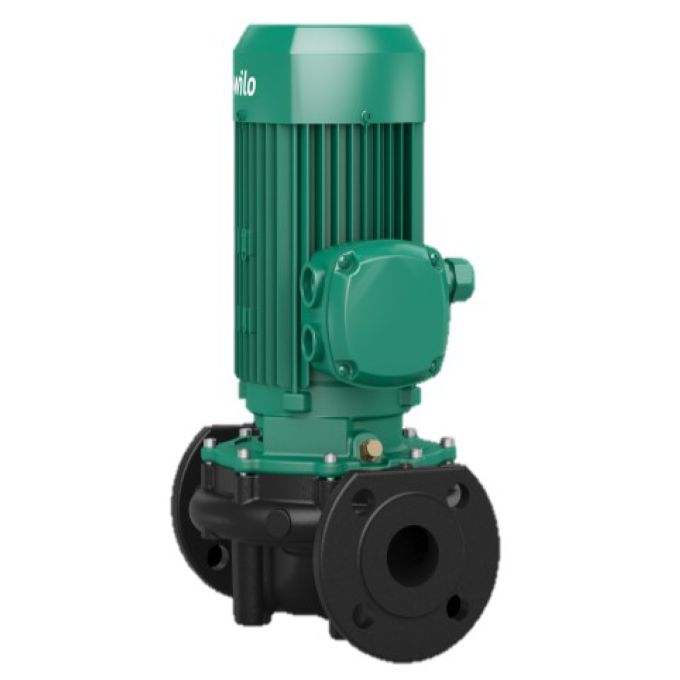

Wilo Veroline IPL 100/165-2,2/4 Centrifugal Pump - 2.20 kW
This item is now obsolete. Please view our alternatives below.
Free Delivery Over £50
1 year warranty With This Product
The Veroline IPL Centrifugal Pumps are a range of single-stage, low-pressure centrifugal pump in in-line design with mechanical seal, flange connection with pressure measuring connection R 1/8 and motor with one-piece shaft.
Purchase from Pump Sales Direct and recieve free standard delivery.
Type key
|
Example |
IPL 40/160-4/2 |
|
IPL |
In-line pump |
|
40 |
Nominal diameter DN of the pipe connection |
|
160 |
Nominal impeller diameter |
|
4 |
Rated motor power P2 in kW |
|
2 |
Number of poles |
Your advantages
- High standard of corrosion protection thanks to cataphoretic coating
- Standard condensate drainage holes in the motor housings and lanterns
- Series design: motor with one-piece shaft
- Version N: Standard motor V1 with stainless steel plug shaft
- Bidirectional, force-flushed mechanical seal
Technical data
- Permissible temperature range -20 °C to +120 °C
- Mains connection 3~400 V, 50 Hz (others on request)
- Protection class IP 55
- Nominal diameter Rp 1 to DN 100
- Max. operating pressure 10 bar (special version: 16 bar)
Materials
- Pump housing and lantern: EN-GJL-250
- Impeller: PPO fibreglass-reinforced EN-GJL-200 (depending on pump type)
- Shaft: 1.4021
- Mechanical seal: AQEGG; other mechanical seals on request
| Price | £2,293.50 |
|---|---|
| Manufacturer | Wilo |
| Warranty | 1 year warranty |
| Bars | 10 bar |
| Impeller Type | Single |
| Electrical supply | 400V |
| AC Power | Three Phase |
| Flow Rate | 1450 Ltr/min |
| Max Head | 7.5m |
| Switch | None |
| Duty Type | Commercial |
| Pump Type | Centrifugal Pump |
| Next Day Delivery | No |
| Manufacturers Part Number | 2121194 |
