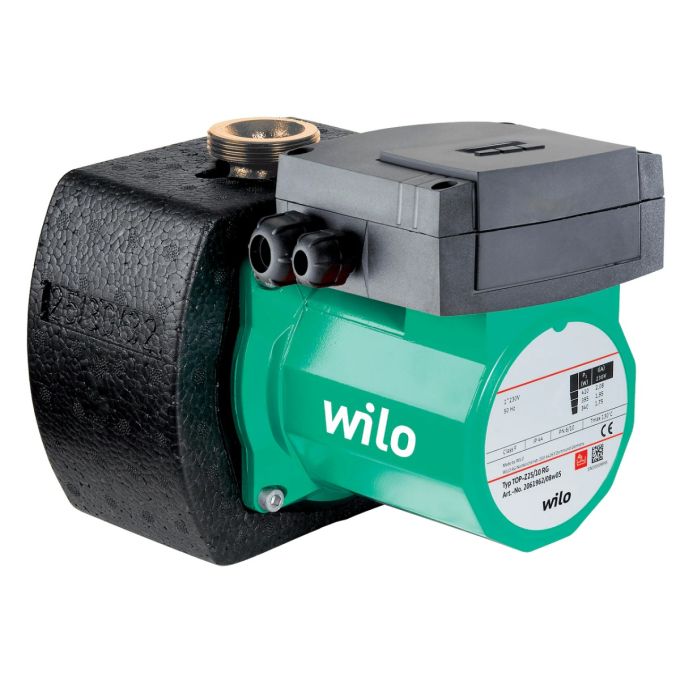

Wilo TOP-Z 30/7 Domestic Hot Water Circulator - 230v - Single Phase - Threaded Connection
This item is now obsolete. Please view our alternatives below.
Free Delivery Over £50
1 year warranty With This Product
This circulator is suitable only for drinking water.
Can be used for domestic hot water circulation systems in the industry and building services.
Glandless circulator with screwed or flange connection, preselectable speed stages for power adjustment.
Equipment and function
- Manual power adjustment with 3 speed stages
- Pumps with 1~ motor:
- P2 up to 90 W: internal protection against unacceptably high winding temperatures
- P2 = 180 W: Full motor protection with thermal winding contacts in conjunction with tripping unit
- Pumps with 3~ motor:
- P2 up to 90 W: internal protection against unacceptably high winding temperatures
- P2 ≥ 180 W: Full motor protection with integrated trip electronics
- Fault signal light
- Contact for collective fault signal
- Direction of rotation signal lamp
- Mains connection 3~, 230 V with optional switching plug
- Pump housing in red brass or grey cast iron (stainless steel depending on type)
- PN 6/PN 10 combination flange (for DN 40 to DN 65)
- Thermal insulation shells
- Additional functions by retrofittable Protect Module C:
- SSM fault signal as potential-free NC contact
- SBM run signal as potential-free NO contact
- "Overriding Off" control input via external potential-free contact (NC contact)
- Blocking detection
- Full motor protection with tripping unit
- Fault acknowledgement
- Dual pump management (two single pumps installed in parallel): Main/standby operation (automatic fault-actuated switchover/time-dependent pump cycling)
| Price | £780.12 |
|---|---|
| Manufacturer | Wilo |
| Warranty | 1 year warranty |
| AC Power | Single Phase |
| Flow Rate | 118 Ltr/min |
| Max Head | 5.5m |
| Water type | Clean or Discoloured |
| Pump Type | Circulator Pump |
| Duty Type | Domestic |
| Submersible vs Surface Mounted | Surface Mounted |
| Next Day Delivery | No |
| Port To Port | 180mm |
| Connection Size | 2" Threaded |
| Connection Type | Threaded |
| Manufacturers Part Number | 2048340 |
