Wilo Stratos PICO 25/0,5-6-130 Glandless Circulator Pump - 230v - Single Phase - 10 bar
This item is now obsolete. Please view our alternatives below.
Free Delivery Over £50
1 year warranty With This Product

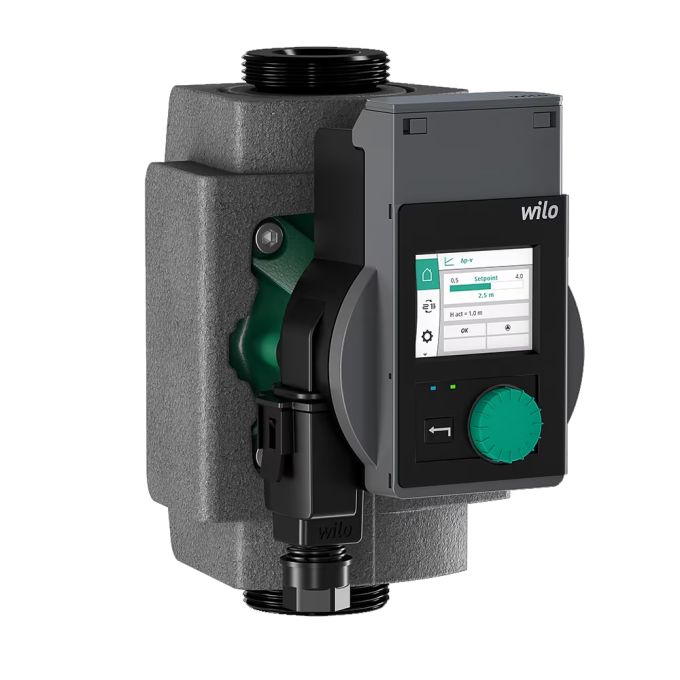

WILO Stratos PICO, electronically controlled high efficiency pump
Glandless circulator with screwed connection, blocking-current proof synchronous motor using ECM technology (up to 90 % energy saving compared to an uncontrolled pump) and built-in electronic power control for continuous differential pressure control.
Can be used for all heating and air-conditioning applications (-10 °C to +110 °C).
Control mode can be selected in accordance with the radiator/underfloor heating application.
Control modes:
- Permanent, automatic power adjustment to system requirements without setpoint specification Wilo Dynamic Adapt plus (factory setting)
- Settings assistant for number of radiators or underfloor heating area
- Variable differential pressure (Δp-v)
- Constant differential pressure (Δp-c)
- Constant speed (n-const.)
Functions:
- Automatic setback operation
- Fault/warning message display including description and error code in plain text
- Venting routine for automatic venting of the rotor chamber
- Manual restart function for additional deblocking of the pump as required
- Key lock
- Function for resetting the electricity meter or for resetting the settings to the factory settings
- Dry-running detection
- Automatic deblocking function and integrated motor protection
- Supports hydraulic balancing with the Wilo-Assistant app
Version:
- Graphic colour display with operation via one button manual operation level
- Slot for Wilo communication modules as an interface for e.g. Bluetooth
- Use the Wilo-Assistant app to read and set operating data and –among other things– set up a commissioning protocol through the Bluetooth interface (as an accessory)
- Minimal consumption only 3 W
- Equipped as standard with a thermal insulation shell
- 5-year warranty
- High efficiency, TÜV tested (the certificate can be seen at www.wilo.com/legal)
Optional accessories:
- Wilo-Smart Connect module BT for Bluetooth connection to mobile devices via Wilo-Assistant app
| Price | £236.00 |
|---|---|
| Manufacturer | Wilo |
| Warranty | 1 year warranty |
| Electrical supply | 230V |
| AC Power | Single Phase |
| Water type | Clean or Discoloured |
| Pump Type | Circulator Pump |
| Duty Type | Domestic |
| Submersible vs Surface Mounted | Surface Mounted |
| Next Day Delivery | Yes |
| Port To Port | 130mm |
| Manufacturers Part Number | 4244396 |
