Wilo Drainlift M2-8 RV Sewage Lifting Unit - 230v - Single Phase
This item is now obsolete. Please view our alternatives below.
Free Delivery Over £50
1 year warranty With This Product

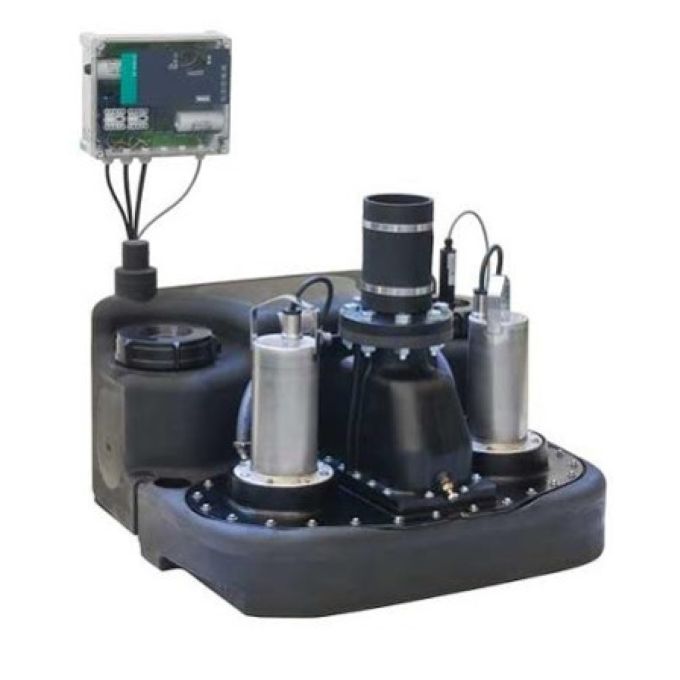

Ready-for-connection, fully submersible and automatic sewage lifting unit as a double pump system with automatic duty cycling, standby and peak-load operation. Dry motor in single-phase version with stainless steel housing and thermal motor monitoring.
Gas-tight and water-tight collection reservoir made from plastic with tapering collection chamber for reliable operation without any build-up of deposits, freely selectable inlets and a level control device with a rod float switch.
Central pressure connection with integrated Y-pipe, non-return valve, and lifting device.
Microprocessor-controlled switchgear with:
- LEDs for displaying operating status and error messages
- Adjustable run-on time
- Integrated and mains-independent alarm
- 1x potential-free contact for connection of a collective fault signal (SSM)
Scope of delivery:
- Sewage lifting unit ready for connection with switchgear and plug
- 1x inlet seal DN 100
- 1x hole saw for inlet DN 100
- 1x lip seal for connection of diaphragm hand pump or inlet connection Ø 50 mm
- 1x collar for ventilation connection DN 70
- 1x flange connector DN 80/100 with flat gasket, flexible hose section and fixing material for pressure connection DN 100
- 9 V rechargeable battery
- 11x sound absorption strips for sound insulation installation
- Fixation material
Operating Data:
Fluid to be pumped : Water 100 %
Fluid temperature : 20 °C
Delivery head at Q=0 : 8,50 m
Permitted field of application:
Max. ambient temperature : 40 °C
Min. fluid temperature : 3 °C
Max. fluid temperature : 40 °C
Max. fluid temperature, for short periods up to 3 min : 60 °C
Maximum operating pressure : 1,5 bar
Max. permissible pressure in the pressure pipe : 150 kPa Unit
Gross volume : 115 l
Max. switching volume : 40 l
Inlet connection : DN 40/DN 100/DN 150
Pressure connection : DN 80
Venting : DN 70
Operating mode per pump : S3-15%, 80 sec
Min. level ON : 180 mm
Dimensions : 810 x 505 x 780 mm
Diagonal dimension : 970 mm
Weight approx. : 91 kg
Motor
Mains connection : 1~230V/50 Hz
Power consumption P1 : 1,3 kW
Rated speed : 2900 1/min
Rated current : 5,8 A
| Price | £5,030.52 |
|---|---|
| Manufacturer | Wilo |
| Warranty | 1 year warranty |
| Dimensions | 810 x 505 x 780 mm |
| Bars | 1.5 bar |
| Electrical supply | 240V |
| AC Power | Single Phase |
| Cable length | 1.5m |
| Max Head | 8.5m |
| Pump Operation | Automatic (with float switch) |
| Water type | Sewage |
| Switch | Float Switch |
| Duty Type | Commercial |
| Submersible vs Surface Mounted | Submersible |
| Pump Type | Sewage Pump |
| Next Day Delivery | No |
| Manufacturers Part Number | 2531400 |
