Tsurumi LogicPress - Electronic Pressure Switch
This item is now obsolete. Please view our alternatives below.
Free Delivery Over £50
1 year warranty With This Product

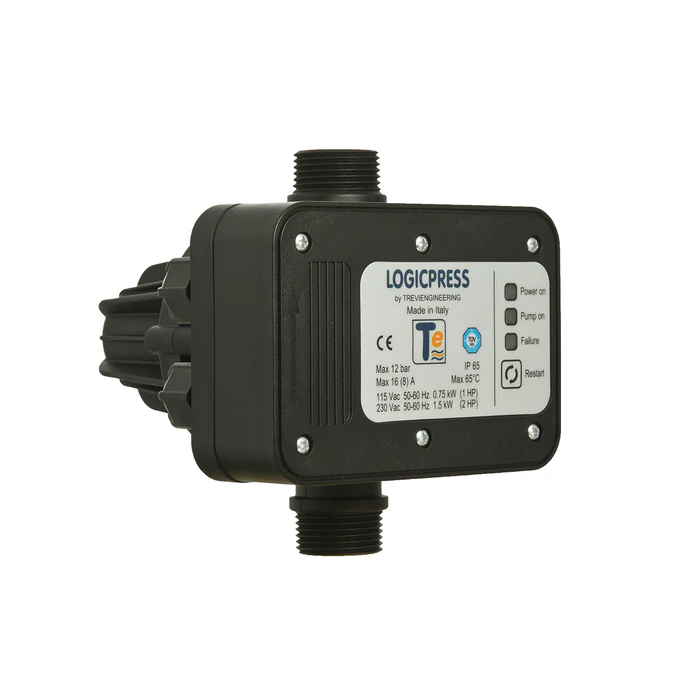

The Tsurumi LogicPress is an advanced electronic pressure switch designed to control and protect electric pumps in various water systems. This versatile device, available under SKU 20-40-1014, boasts features that enhance pump performance, efficiency, and longevity.
Key Features
Pump Control and Protection
The LogicPress automatically starts the pump when a valve in the pipe system is opened and stops it immediately when the valve is closed. This functionality maintains a constant system pressure and reduces the effects of the water hammer.
Dual Voltage Compatibility
The device can operate at both 110 volts and 230 volts, and it can work with 400 volts three-phase systems when used with a contactor.
Dry Run Protection
The LogicPress incorporates integral dry-running protection, safeguarding the pump from damage caused by operating without water.
User-Friendly Interface
It features pump status LEDs and an external reset switch for easy monitoring and control.
Versatile Installation
The LogicPress can be fitted to any surface-mounted pump or in the delivery line of a submersible pump, provided it operates within the rated pressure, flow, and motor specifications.
Technical Specifications
- Inlet/Outlet Size: 1"
- Voltage: 110-230V
- Maximum Motor Power: 0.75kW (110V) / 1.5kW (230V)
- Minimum Flow Requirement: 1 litre per minute
- Maximum Water Column: 15 metres (1.5 bar) between the switch and the highest outlet
- Protection Rating: IP65
The LogicPress offers a comprehensive solution for pump control and protection, making it ideal for various water supply applications in residential and commercial settings.
| Price | £63.96 |
|---|---|
| Manufacturer | Tsurumi |
| Warranty | 1 year warranty |
| Dimensions | 11 cm H x 14 cm W x 19 cm D |
| Bars | 12 bar |
| Electrical supply | 230V |
| AC Power | Single Phase |
| Flow Rate | 166 Ltr/min |
| Switch | Pressure Switch |
| Duty Type | Commercial |
| Pump Type | Pressure Switch |
| Next Day Delivery | No |
| Manufacturers Part Number | 20-40-1014 |
