Trebles Run-Around-Coil Package - 5302-EC-XL-32-60 - Standard
This item is now obsolete. Please view our alternatives below.
Free Delivery Over £50
1 year warranty With This Product

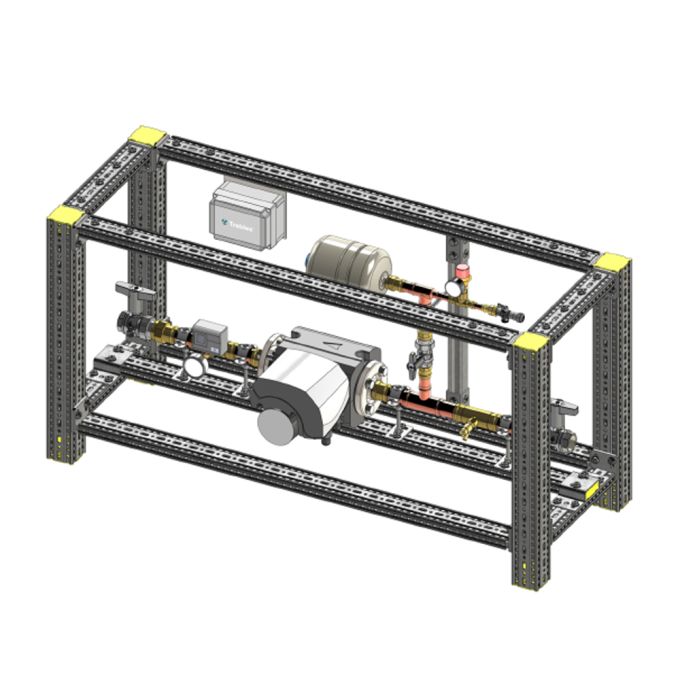

Trebles RAC pump packages are a prefabricated solution for use in sealed cooling systems in conjunction with air handling units. Incorporating a circulation pump, pressure vessel, low pressure switch, safety valve and other associated ancillaries all housed within a Galvanised Steel frame, a Trebles RAC unit can greatly reduce time spent on site during installation.
The pump is controlled via a 0-10V signal from the air handling unit to ensure perfect synchronisation and features built in dry run protection and a automatic air purge function. The RAC pump package also includes a control box, pre-wired for 0-10V signal input, remote start/stop, pump alarm and a low pressure switch. Once installed, a RAC unit can be left unattended for prolonged periods of time with minimal maintenance.
When plant room space is at a premium, the enclosed option facilitates external installation, protecting
the equipment with a Marine Grade Aluminium enclosure that is easily removable for future service &
maintenance.
Features & Benefits:
- High Efficiency Circulator
- Single Pump
- 4L Pressure Vessel
- Safety Relief Valve
- Low Pressure Switch
- Pressure Gauge
- 0-10V Signal Operation
- Dry Run Protection
- Auto Air Purge
- Free Standing
- Weartherproof Option
- 2 Year Guarantee
| Price | £2,777.73 |
|---|---|
| Manufacturer | Trebles |
| Warranty | 1 year warranty |
| Electrical supply | 230V |
| AC Power | Single Phase |
| Pressure Rating | 10 Bar |
| Water type | Clean or Discoloured |
| Pump Type | Run Around Coil Package |
| Duty Type | Commercial |
| Inlet Connection | 1-1/4” Female BSP |
| Outlet Connection | 1-1/4” Female BSP |
| Next Day Delivery | No |
| Manufacturers Part Number | 5302-EC-XL-32-60 |
