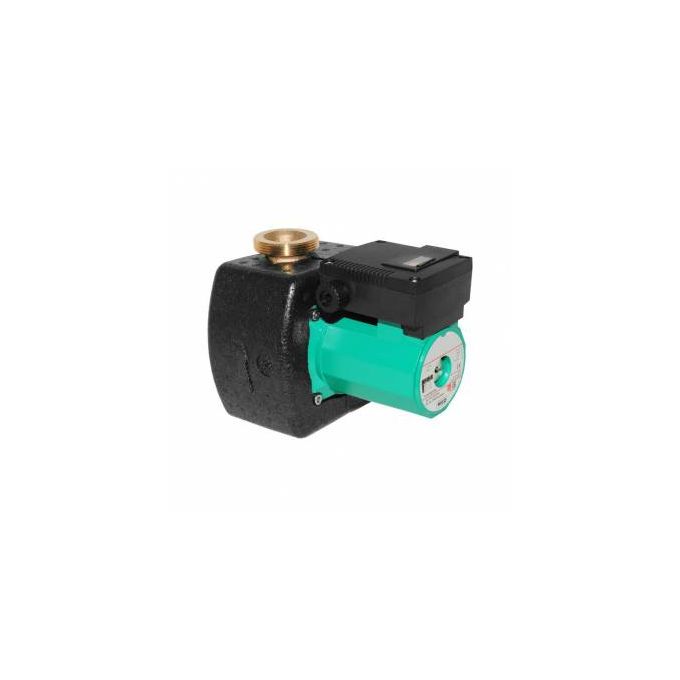

Wilo TOP-Z 30/10 Domestic Hot Water Circulator - Single Phase
This item is now obsolete. Please view our alternatives below.
Free Delivery Over £50
1 year warranty With This Product
Application
Domestic hot water circulation systems in industry and building services.
Equipment/function
Operating modes
- Speed-stage switching
Manual functions
- Setting the speed stages: 3 speed stages
Automatic functions
- Internal protection against unacceptably high winding temperatures (only for pumps with P2 < 180 W, optional for all types with switchgears SK 602N and SK 622N).
Signal and display functions
- Thermal winding contact (WSK, potential-free NC contact) (only for pumps with P2 ≥ 180 W)
- Direction of rotation signal lamp (only for 3~ pumps)
Type key
|
Example: |
Wilo-TOP-Z 40/7 |
|
TOP |
Standard pump (screw-end pump or flange-end pump) |
|
‐Z |
Single pump for domestic hot water circulation |
|
40/ |
Nominal connection diameter |
|
7 |
Nominal delivery head range [m] at Q = 0 m3/h |
| Price | £852.72 |
|---|---|
| Manufacturer | Wilo |
| Warranty | 1 year warranty |
| Dimensions | Length: 180mm | Height: 245mm | Width: 184mm |
| Bars | 16 bar |
| Electrical supply | 230V |
| AC Power | Single Phase |
| Water type | Clean or Discoloured |
| Pump Type | Circulator Pump |
| Duty Type | Domestic |
| Submersible vs Surface Mounted | Surface Mounted |
| Next Day Delivery | Yes |
| Port To Port | 180mm |
| Manufacturers Part Number | 2059857 |
