E501380AA
Lowara Ecocirc XLplus D 40-100 F Twin Head Circulator Pump - 230v - Single Phase - 220mmThe Ecocirc XLplus D 40-100F circulator features a variable speed drive and is suitable for water circulation in HVAC systems and communicates with BMS systems via Modbus RTU and BACnet.
-
96110405
Grundfos TPE 100-370/4 A-F-A-BQQE-PX3 Variable Speed In Line Circulator Pump - 415v - Three Phase - 3269 Ltr/min - ObsoleteGrundfos TPE Series 1000, TPE2 pumps are single-stage, close-coupled in-line centrifugal pumps with mechanical shaft seal and primely for applications such as heating/cooling/district energy. The pumps are fitted with frequency controlled motors.
-
96401934
Grundfos TPD 40-60/2 0.25kw 2900RPM Twin Head Pump - 415v - ObsoleteGrundfos TPD 40-60/2 0.25kw 2900RPM Twin Head Pump, 415v. Grundfos TPD 40-60/2 is a single-stage, close-coupled, volute pump with in-line suction and discharge ports of identical diameter.
-
GR-96401967
Grundfos TPD 40-120/2 0.37kw 2900RPM BQQE 96401967 Twin Head Pump - 415v - ObsoleteGrundfos TPD 40-120/2 0.37kw 2900RPM Twin Head Pump, 415v. Grundfos TPD 40-120/2 is a single-stage, close-coupled, volute pump with in-line suction and discharge ports of identical diameter. The pump is of the top-pull-out design, i.e. the power head (motor, pump head and impeller) can be removed for maintenance or service while the pump housing remains in the pipework. The pump is fitted with an unbalanced rubber bellows seal. The shaft seal is according to EN 12756. Pipework connection is via PN 6/10/16 DIN flanges (EN 1092-2 and ISO 7005-2). The pump is fitted with a fan-cooled asynchronous motor.
-
GR-97549426
Grundfos UPS 15-50N Domestic Hot Water Service Pump Circulator - 230vGrundfos UPS 15-50N Domestic Hot Water Service Pump Circulator, 230v. The UPS 15-50N is a stainless steel three-speed circulating pump suitable for domestic hot-water systems.
-
GR-98057205
Grundfos UP 20-15N Domestic Hot Water Service Pump Circulator - 230vThe UP 20-15N is a stainless steel fixed-speed circulating pump suitable for domestic hot-water systems. The UP 20-15N can be connected to an on/off time switch to save energy. The on/off time switch can switch the pump on/off to limit pump operation to periods when hot water is usually required.
-
GR-98957948
Grundfos TPD 32-60/2 0.25kw 2900RPM BQQE Twin Head Pump - 230vGrundfos TPD 32-60/2 0.25kw 2900RPM Twin Head Pump, 230v. Grundfos TPD 32-60/2 is a single-stage, close-coupled, volute pump with in-line suction and discharge ports of identical diameter. The pump is of the top-pull-out design, i.e. the power head (motor, pump head and impeller) can be removed for maintenance or service while the pump housing remains in the pipework. The pump is fitted with an unbalanced rubber bellows seal. The shaft seal is according to EN 12756. Pipework connection is via PN 6/10/16 DIN flanges (EN 1092-2 and ISO 7005-2). The pump is fitted with a fan-cooled asynchronous motor.
-
GR-98906995

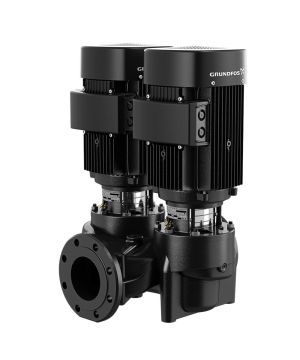

Grundfos TPD 32-120/2 0.25kw 2900RPM BQQE Twin Head Pump - 230vGrundfos TPD 32-120/2 0.25kw 2900RPM Twin Head Pump, 230v. Grundfos TPD 32-120/2 is a single-stage, close-coupled, volute pump with in-line suction and discharge ports of identical diameter. The pump is of the top-pull-out design, i.e. the power head (motor, pump head and impeller) can be removed for maintenance or service while the pump housing remains in the pipework. The pump is fitted with an unbalanced rubber bellows seal. The shaft seal is according to EN 12756. Pipework connection is via PN 6/10/16 DIN flanges (EN 1092-2 and ISO 7005-2). The pump is fitted with a fan-cooled asynchronous motor.
-
GR-98958120
Grundfos TPD 32-150/2 0.37kw 2900RPM BQQE Twin Head Pump - 230vGrundfos TPD 32-150/2 0.37kw 2900RPM Twin Head Pump, 230v. Grundfos TPD 32-150/2 is a single-stage, close-coupled, volute pump with in-line suction and discharge ports of identical diameter. The pump is of the top-pull-out design, i.e. the power head (motor, pump head and impeller) can be removed for maintenance or service while the pump housing remains in the pipework. The pump is fitted with an unbalanced rubber bellows seal. The shaft seal is according to EN 12756. Pipework connection is via PN 6/10/16 DIN flanges (EN 1092-2 and ISO 7005-2). The pump is fitted with a fan-cooled asynchronous motor.
-
GR-98958121
Grundfos TPD 32-180/2 0.55kw 2900RPM BQQE Twin Head Pump - 230vGrundfos TPD 32-180/2 0.55kw 2900RPM Twin Head Pump, 230v. Grundfos TPD 32-180/2 is a single-stage, close-coupled, volute pump with in-line suction and discharge ports of identical diameter. The pump is of the top-pull-out design, i.e. the power head (motor, pump head and impeller) can be removed for maintenance or service while the pump housing remains in the pipework. The pump is fitted with an unbalanced rubber bellows seal. The shaft seal is according to EN 12756. Pipework connection is via PN 6/10/16 DIN flanges (EN 1092-2 and ISO 7005-2). The pump is fitted with a fan-cooled asynchronous motor.
-
GR-98958123
Grundfos TPD 32-230/2 0.75kw 2900RPM BQQE Twin Head Pump - 230vGrundfos TPD 32-230/2 0.75kw 2900RPM Twin Head Pump, 230v. Grundfos TPD 32-230/2 is a single-stage, close-coupled, volute pump with in-line suction and discharge ports of identical diameter. The pump is of the top-pull-out design, i.e. the power head (motor, pump head and impeller) can be removed for maintenance or service while the pump housing remains in the pipework. The pump is fitted with an unbalanced rubber bellows seal. The shaft seal is according to EN 12756. Pipework connection is via PN 6/10/16 DIN flanges (EN 1092-2 and ISO 7005-2). The pump is fitted with a fan-cooled asynchronous motor.
-
GR-98470784
Grundfos TPD 40-60/2 0.25kw 2900RPM BQQE Twin Head Pump - 230vGrundfos TPD 40-60/2 0.25kw 2900RPM Twin Head Pump, 230v. Grundfos TPD 40-60/2 is a single-stage, close-coupled, volute pump with in-line suction and discharge ports of identical diameter. The pump is of the top-pull-out design, i.e. the power head (motor, pump head and impeller) can be removed for maintenance or service while the pump housing remains in the pipework. The pump is fitted with an unbalanced rubber bellows seal. The shaft seal is according to EN 12756. Pipework connection is via PN 6/10/16 DIN flanges (EN 1092-2 and ISO 7005-2). The pump is fitted with a fan-cooled asynchronous motor.
-
GR-98958131
Grundfos TPD 40-190/2 0.75kw 2900RPM BQQE Twin Head Pump - 230vGrundfos TPD 40-190/2 0.75kw 2900RPM Twin Head Pump, 230v. Grundfos TPD 40-190/2 is a single-stage, close-coupled, volute pump with in-line suction and discharge ports of identical diameter. The pump is of the top-pull-out design, i.e. the power head (motor, pump head and impeller) can be removed for maintenance or service while the pump housing remains in the pipework. The pump is fitted with an unbalanced rubber bellows seal. The shaft seal is according to EN 12756. Pipework connection is via PN 6/10/16 DIN flanges (EN 1092-2 and ISO 7005-2). The pump is fitted with a fan-cooled asynchronous motor.
-
GR-98958132
Grundfos TPD 40-230/2 1.10kw 2900RPM BQQE Twin Head Pump - 230vGrundfos TPD 40-230/2 1.10kw 2900RPM Twin Head Pump, 230v. Grundfos TPD 40-230/2 is a single-stage, close-coupled, volute pump with in-line suction and discharge ports of identical diameter. The pump is of the top-pull-out design, i.e. the power head (motor, pump head and impeller) can be removed for maintenance or service while the pump housing remains in the pipework. The pump is fitted with an unbalanced rubber bellows seal. The shaft seal is according to EN 12756. Pipework connection is via PN 6/10/16 DIN flanges (EN 1092-2 and ISO 7005-2). The pump is fitted with a fan-cooled asynchronous motor.
-
GR-98958134
Grundfos TPD 40-270/2 1.50kw 2900RPM BQQE Twin Head Pump - 230vGrundfos TPD 40-270/2 1.50kw 2900RPM Twin Head Pump, 230v. Grundfos TPD 40-270/2 is a single-stage, close-coupled, volute pump with in-line suction and discharge ports of identical diameter. The pump is of the top-pull-out design, i.e. the power head (motor, pump head and impeller) can be removed for maintenance or service while the pump housing remains in the pipework. The pump is fitted with an unbalanced rubber bellows seal. The shaft seal is according to EN 12756. Pipework connection is via PN 6/10/16 DIN flanges (EN 1092-2 and ISO 7005-2). The pump is fitted with a fan-cooled asynchronous motor.
-
GR-98957978
Grundfos TPD 50-60/2 0.37kw 2900RPM BQQE Twin Head Pump - 230vGrundfos TPD 50-60/2 0.25kw 2900RPM Twin Head Pump, 230v. Grundfos TPD 50-60/2 is a single-stage, close-coupled, volute pump with in-line suction and discharge ports of identical diameter. The pump is of the top-pull-out design, i.e. the power head (motor, pump head and impeller) can be removed for maintenance or service while the pump housing remains in the pipework. The pump is fitted with an unbalanced rubber bellows seal. The shaft seal is according to EN 12756. Pipework connection is via PN 6/10/16 DIN flanges (EN 1092-2 and ISO 7005-2). The pump is fitted with a fan-cooled asynchronous motor.
Not sure what you're looking for?
![Call us to get expert advice](https://www.pumpsalesdirect.co.uk/static/version1724331047/frontend/PumpSalesDirect/default/en_GB/images/product-page-call-us.png)
Call us to get expert advice:
Circulating Pumps
Circulating pumps are used to move slurries, liquids and gases through a closed circuit. They are usually employed to move hot water around a domestic heating system or in hydroponic cooling or heating systems. In a domestic heating system, circulating pumps enable an instant hot water supply on demand from a tap. Not only does this system save energy by avoiding the costly heating of large tanks of water, but it also enables a householder to save water. The energy needed to run the pump is far smaller than the energy required to heat and re-heat water tanks. The high-efficiency CP50 (60) circulator pump can also be used to control under-floor and radiator heating as well as all air conditioning and heating. Its operational temperature range is -10 degrees Celsius to +95 degrees C. Made with a cast-iron housing, it has an impeller made of polypropylene. It has integrated electronic controls to provide variable differential pressures. The CP SE60B circulating pump is used to provide a secondary supply of domestic hot water. This model has an impeller made of plastic that is reinforced with glass, carbon bearings and a ceramic shaft, all contained within a bronze housing. Ideally, it can be used on both new heating and cooling systems or as a replacement for existing or damaged pumps. The optimal use of this pump is for drinking water. It can be used in the food-processing industry to circulate potable water. It operates over a temperature range of +2 degrees C to +65 degrees C, with a maximum ambient temperature of 40 degrees C.
