Reflex N 80 Expansion Vessel - 80 Litre
This item is now obsolete. Please view our alternatives below.
Free Delivery Over £50
1 year warranty With This Product

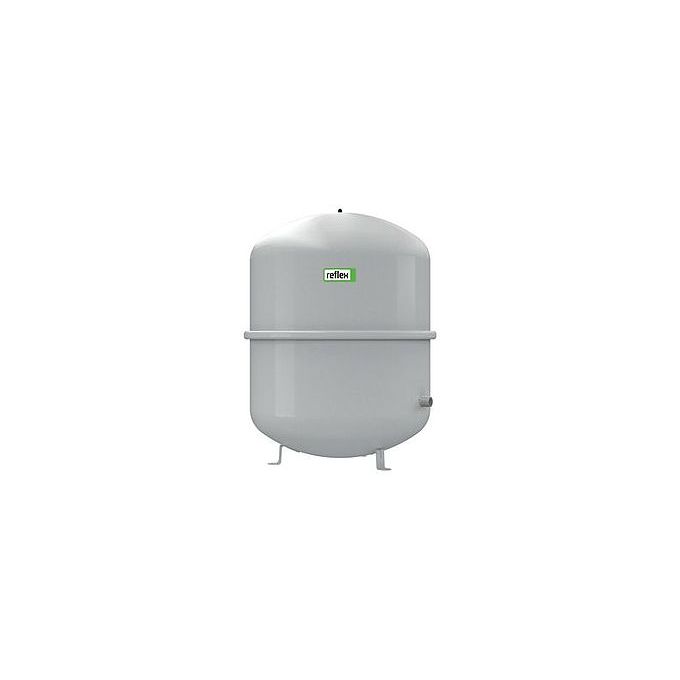

Reflex Reflex N 80 Diaphragm expansion tank for sealed heating and cooling water systems. Vessels fitted according to DIN EN 13831. Approval according to Pressure Equipment Directive 2014/68/EC.
- Durable epoxy resin coating
- Non-replaceable diaphragm according to DIN EN 13831
- 35 litres and above upright
- For antifreeze additive of at least 25 – 50 %
- With threaded connections
- max. permissible system temperature 120 °C
- Max. operating temperature 70 °C
Type: N 80
Colour: grey
Diaphragm material: SBR
Nominal volume: 80 l
Max. useful volume: 72 l
Max. permissible system temperature: 120 °C
Min. perm. operating temperature : -10 °C
Max. perm. operating temperature: 70 °C
Max. perm. operating pressure: 6 bar
Factory provided gas supply pressure: 1.5 bar
Connection: R 1"
Diameter: 512 mm
Height: 558 mm
High water connection: 172 mm
Tilt dimension approx.: 757 mm
Weight: 13.28 kg
| Price | £119.87 |
|---|---|
| Manufacturer | Reflex |
| Warranty | 1 year warranty |
| Capacity | 80Ltr |
| Water type | Clean or Discoloured |
| Pump Type | Expansion Vessel |
| Next Day Delivery | No |
| Manufacturers Part Number | 8210200 |
