Grundfos NK 100-315/269AA2F2AESBQQE1W1 Long Coupled Single Stage End Suction Pump - 400v - Three Phase - 4970 Ltr/min
Free Delivery Over £50
NK 100-315/269 AA2F2AESBQQE1W1

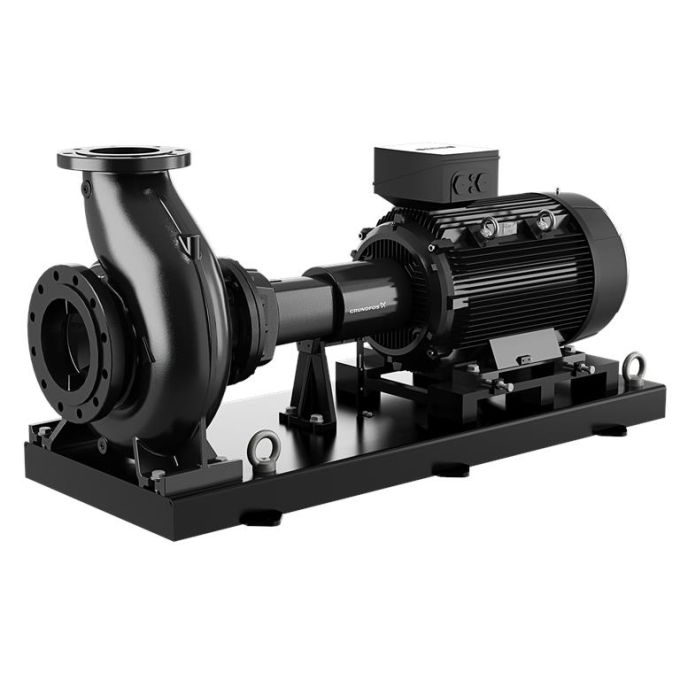

Non-self-priming, single-stage, centrifugal pump designed according to ISO 5199 with dimensions and rated performance according to EN 733. Flanges are PN 16 with dimensions according to EN 1092-2. The pump has an axial suction port, a radial discharge port and horizontal shaft. It is of the back pull-out design enabling removal of the coupling, bearing bracket and impeller without disturbing the motor, pump housing or pipework. The unbalanced rubber bellows seal is according to DIN EN 12756. The pump is fitted with a foot-mounted, fan-cooled asynchronous motor. Pump and motor are mounted on a common base frame.
Price | £24,108.70 |
---|---|
Manufacturer | Grundfos |
Warranty | 1 year warranty |
Electrical supply | 400V |
AC Power | Three Phase |
Flow Rate | 4970 Ltr/min |
Max Head | 90.3m |
Water type | Clean or Discoloured |
Pump Type | End Suction Pump |
Duty Type | Commercial |
Submersible vs Surface Mounted | Surface Mounted |
Inlet Connection | DN 125 |
Outlet Connection | DN 100 |
Next Day Delivery | No |
Manufacturers Part Number | 98829703 |
