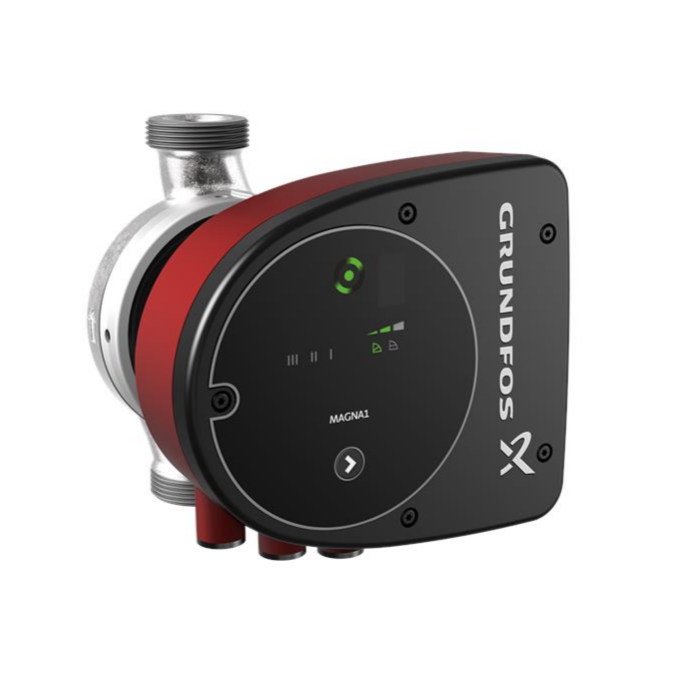

Grundfos MAGNA 1C 32-100N Circulator Pump - 230v

Part Number:
99221256
This item is now obsolete. Please view our alternatives below.
£2,107.68 RRP £1,369.99 £1,141.66
In stock Hurry! Last Few Remaining

Free Delivery Over £50

Next Day Delivery Available

The new MAGNA1 is the simple option for a job well done. It is the perfect choice when replacing older circulators and due to its compliance with the EuP 2015 regulations, substantial savings on electricity is a reality.
1 year warranty With This Product

MAGNA1 32-100 N
The new MAGNA1 is the simple option for a job well done. It is the perfect choice when replacing older circulators and due to its compliance with the EuP 2015 regulations, substantial savings on electricity is a reality. The ideal choice for basic performance needs in applications where basic system control and monitoring is desired.



  • Monitoring via the fault relay, ensuring peace of mind
  • Digital start/stop input available for remote pump control
  • Continuous operation and reduced downtime with the wireless twin pump function (available on twin-head pumps)
  • High energy efficiency resulting in substantial savings on electricity
  • Easy setup and operation via the simple user interface
  • No maintenance due to the canned-rotor type design.

MAGNA1 is the simple and efficient choice for most applications including

  • Heating
    • Main pump
    • Mixing loops
    • Heating surfaces
  • Cooling
    • Air conditioning surfaces
    • Ground source heat pump systems
    • Smaller chiller applications
Materials:
Pump housing:    Stainless steel
     EN 1.4308
     ASTM 351 CF8
Impeller:    PES 30%GF

Installation:
Range of ambient temperature:    32 .. 104 °F
Maximum operating pressure:    145.04 psi
Pipe connection:    G 2"
Pressure stage:    PN10
Port-to-port length:    7 1/8 in

Electrical data:
Power input - P1:    8 .. 175 W
Main frequency:    50 / 60 Hz
Rated voltage:    1 x 230 V
Maximum current consumption:    0.08 .. 1.41 A
Enclosure class (IEC 34-5):    X4D
Insulation class (IEC 85):    F

Others:
Energy (EEI):    0.20
Net weight:    11 lb
Gross weight:    12.1 lb
Shipping volume:    0.46 ft³
Finnish LVI No.:    4615312
More Information
Price £1,141.66
Manufacturer Grundfos
Warranty 1 year warranty
Electrical supply 230V
AC Power Single Phase
Flow Rate 175 Ltr/min
Max Head 10.9m
Water type Clean or Discoloured
Pump Type Circulator Pump
Switch None
Duty Type Domestic
Next Day Delivery Yes
Port To Port 180mm
Connection Size G 2"
Connection Type G
Manufacturers Part Number 99221256
