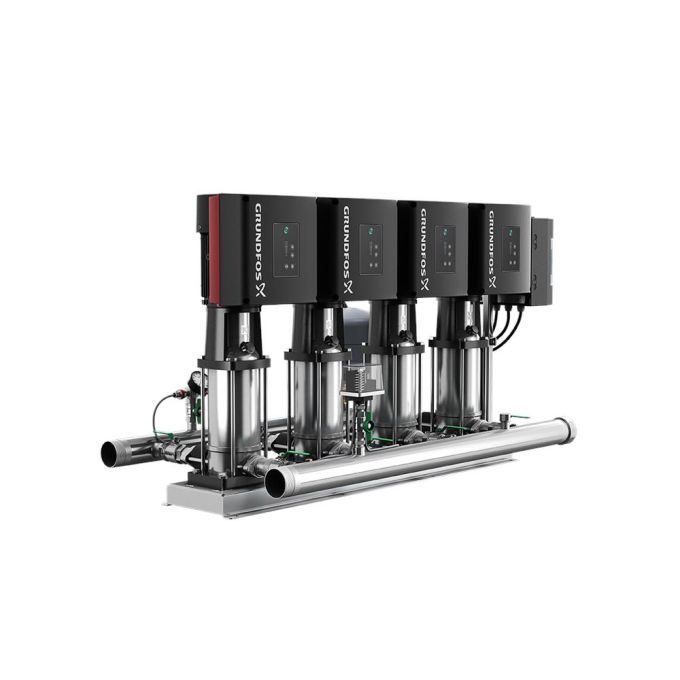

Grundfos Hydro Multi-E 4 CRIE 5-9 U2 A-A-A-A-A Booster Set - 400v - Three Phase - 680 Ltr/min

Part Number:
98486781
This item is now obsolete. Please view our alternatives below.
£27,723.60 RRP £20,515.46 £17,096.22

Free Delivery Over £50

Energy efficient pressure boosting system for boosting of clean water. Available with 2-4 parallel connected frequency controlled pumps, Integrated advanced controller and all necessary fittings
1 year warranty With This Product

HYDRO MULTI-E 4 CRIE 5-9

GRUNDFOS Hydro Multi-E booster sets are designed for the transfer and pressure boosting of clean water in waterworks, blocks of flats, hotels, industry, hospitals, schools, etc. GRUNDFOS Hydro Multi-E booster set consists of 2 to 4 CRIE pumps coupled in parallel and mounted on a common base frame provided with all the necessary fittings.

Hydro Multi-E is mounted on a common base frame made of stainless steel (DIN W.-Nr. 1.4301). On the suction side are fitted a suction manifold (DIN W.-Nr. 1.4401 or DIN W.-Nr. 1.4571) , a pressure switch mounted on a drainable valve and an isolating valve. On the discharge side of the pumps are fitted a non-return valve, an isolating valve, a pressure gauge, two pressure transmitters mounted on a drainable valve a diaphragm tank and a stainless steel discharge manifold (DIN W.-Nr. 1.4401 or DIN W.-Nr. 1.4571). The Hydro Multi-E is fitted with an on/off-switch for the supply voltage.

The Hydro Multi-E is designed for maintaining a constant pressure regardless of flow changes and fluctuation.

The internal PI-controller regulates the number of running pumps and the speed of the pumps according to the required flow.

The system can be operated directly on the panel of any of the pumps or via Grundfos GO (available as accessory)

Besides the system features:
2 Digital outputs 2 Digital inputs (one used for dry run protection) 2 Analogue inputs (one used for discharge pressure sensor) Multi-Master functionality 2 Limit functions Set-point influence function Pipe filling function High efficient PM motors

Available communication protocols:

  • LON​
  • Profibus​
  • Modbus​
  • SMS/GSM/GPRS​
  • GRM​
  • BACnet​
  • BACnet IP​
  • Modbus TCP​
  • PROFINET

When delivered, the GRUNDFOS Hydro Multi-E booster set is factory tested and ready for operation.

More Information
Price £17,096.22
Manufacturer Grundfos
Warranty 1 year warranty
Electrical supply 400V
AC Power Three Phase
Flow Rate 680 Ltr/min
Max Head 93 m
Water type Clean Water
Duty Type Commercial
Submersible vs Surface Mounted Surface Mounted
Pump Type Booster Set
Next Day Delivery No
Number of Pumps 4
Manufacturers Part Number 98486781
