Grundfos Hydro MPC-E 2 CRE45-4-2 U1 D-A-A-GHJ Booster Set - 400v - Three Phase - 2335 Ltr/min
Free Delivery Over £50

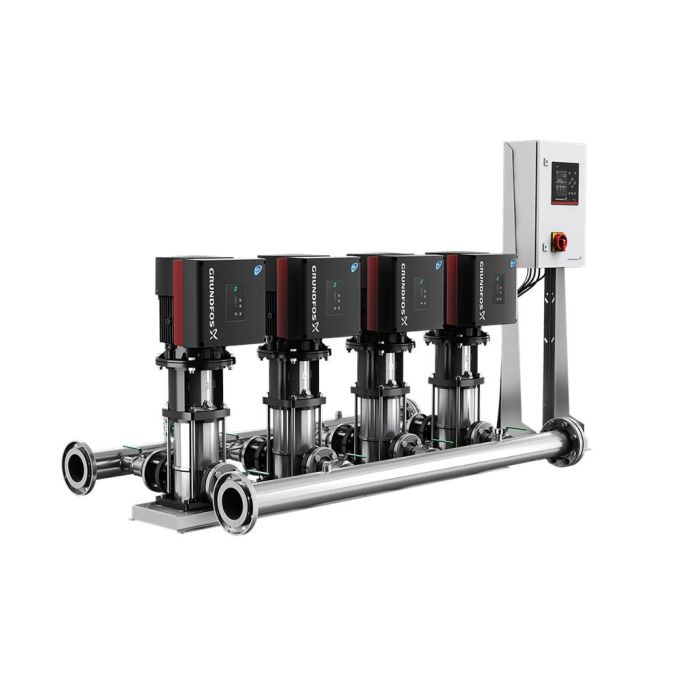

Hydro MPC-E 2 CRE 45-4-2
Pressure booster system supplied as compact assembly according to DIN standard 1988/T5.
All pumps are speed-controlled.
From 0.37 to 11 kW, the booster system is equipped with CR, CRE, CRI, CRIE pumps with electronically commutated permanent-magnet motors with extremely high efficiency. The total efficiency of the motor including the frequency converter applies to IE5 level in IEC60034-31.
From 15 to 22 kW, the booster system is equipped with CR, CRE, CRI, CRIE pumps with motors with integrated frequency control. The total efficiency of the motor including the frequency converter is better than the IE3 level in IEC60034-31, even though this standard only applies to the motor.
|
The system consists of these parts:
:vertical, multistage, centrifugal pumps, type CRE 45-4-2
Pump parts in contact with the pumped liquid are made of stainless steel EN DIN 1.4301 Pump bases and heads are of either cast iron/stainless steel (CRI) or cast iron EN-GJS-500-7 (CR), depending on pump type; other vital parts are made of stainless steel EN DIN 1.4301 The pumps are equipped with a service-friendly cartridge shaft seal, HQQE (SiC/SiC/EPDM)
|
Dry-running protection and diaphragm tank are available according to the list of accessories.
Pump operation is controlled by Control MPC with the following functions:
|
It is possible to add CIM communication modules for communicating with Scada/BMS.
Pumps, piping, cabling complete as well as Control MPC are mounted on the base frame. The booster system has been preset and tested.
There are options to upgrade the pressure boosting system.
Price | £43,965.62 |
---|---|
Manufacturer | Grundfos |
Warranty | 1 year warranty |
Electrical supply | 400V |
AC Power | Three Phase |
Flow Rate | 2335 Ltr/min |
Max Head | 133 m |
Water type | Clean Water |
Duty Type | Commercial |
Submersible vs Surface Mounted | Surface Mounted |
Pump Type | Booster Set |
Next Day Delivery | No |
Number of Pumps | 2 |
Manufacturers Part Number | 98427058 |
