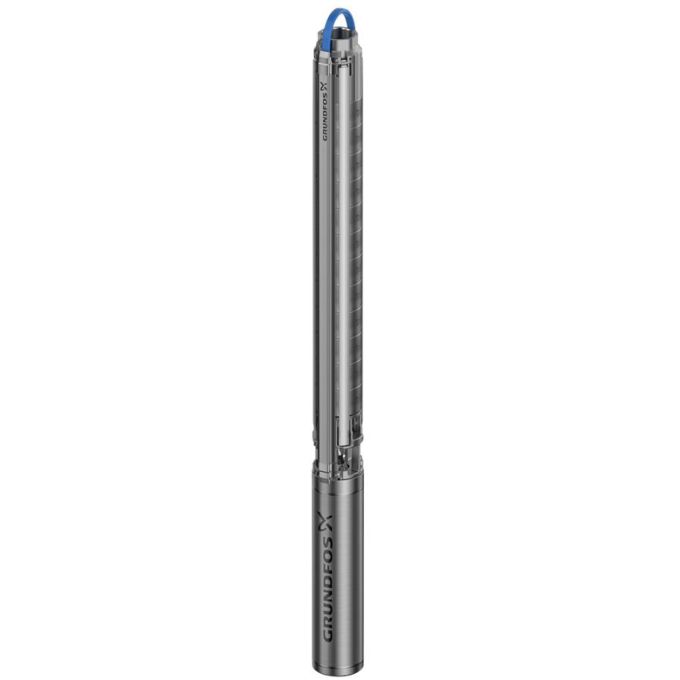

Grundfos SP 9-8 Submersible Borehole Pump - 240v
This item is now obsolete. Please view our alternatives below.
Free Delivery Over £50
1 year warranty With This Product
SP 9-8
Multi-stage submersible borehole pump for raw water supply, groundwater lowering and pressure boosting. The pump is suitable for pumping clean, thin, non-agressive liquids without solid particles or fibers.
The pump is made entirely of Stainless steel DIN W.-Nr. EN 1.4301 and suitable for horizontal and vertical installation. The pump is fitted with a built-in non-return valve.
The motor is a 1-phase motor of the canned type with a sand shield, liquid-lubricated bearings and pressure-equalizing diaphragm.
| Liquid: | ||
| Pumped liquid: | Water | |
| Maximum liquid temperature: | 104 °F | |
| Max liquid temperature at 0.15 m/sec: | 104 °F | |
| Selected liquid temperature: | 68 °F | |
| Density: | 62.29 lb/ft³ | |
| Technical: | ||
| Pump speed on which pump data is based: | 2900 rpm | |
| Rated flow: | 39.6 US gpm | |
| Rated head: | 136.2 ft | |
| Shaft seal for motor: | LIPSEAL | |
| Approvals on nameplate: | CE,EAC | |
| Curve tolerance: | ISO9906:2012 3B | |
| Motor version: | T40 | |
| Materials: | ||
| Pump: | Stainless steel | |
| EN 1.4301 | ||
| AISI 304 | ||
| Impeller: | Stainless steel | |
| EN 1.4301 | ||
| AISI 304 |
| Price | £1,505.16 |
|---|---|
| Manufacturer | Grundfos |
| Warranty | 1 year warranty |
| Dimensions | 1025mm (h) x 101mm Diameter |
| Electrical supply | 240V |
| Cable length | 1.7m |
| Flow Rate | 193 Ltr/min |
| Max Head | 41.5m |
| Water type | Clean or Discoloured |
| Pump Type | Submersible |
| Switch | None |
| Duty Type | Commercial |
| Submersible vs Surface Mounted | Submersible |
| Next Day Delivery | No |
| Outlet Connection | Rp2 |
| Manufacturers Part Number | 98699026 |
