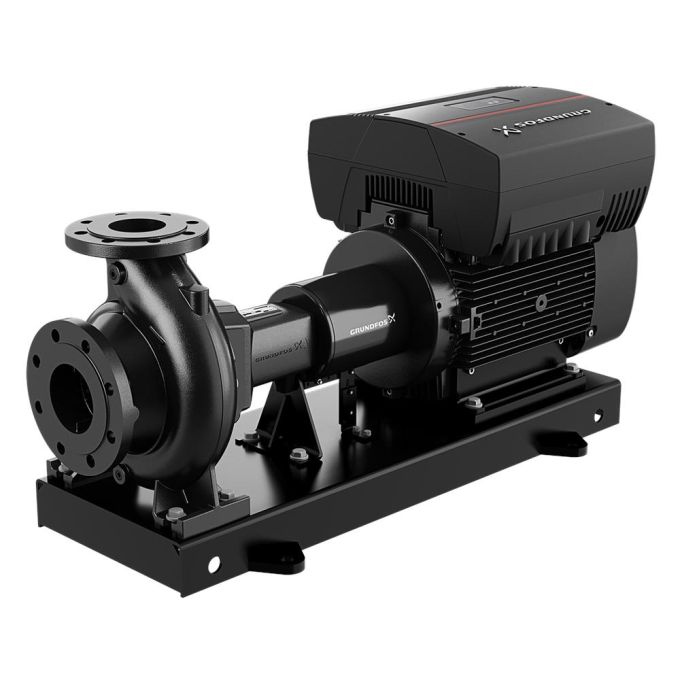

Grundfos NKE 80-315/280AA2F2AESBQQENW3 Long Coupled Single Stage End Suction Pump - 400v - Three Phase - 1783 Ltr/min

Part Number:
98973714
This item is now obsolete. Please view our alternatives below.
£16,987.20 RRP £11,891.04 £9,909.20

Free Delivery Over £50

6 week lead time

Standard pumps according to EN 733 with MGE motor
1 year warranty With This Product

NKE 80-315/280 AA2F2AESBQQENW3

Non-self-priming, single-stage, centrifugal pump designed according to ISO 5199 with dimensions and rated performance according to EN 733. Flanges are PN 16 with dimensions according to EN 1092-2. The pump has an axial suction port, a radial discharge port and horizontal shaft. It is of the back pull-out design enabling removal of the coupling, bearing bracket and impeller without disturbing the motor, pump housing or pipework. The unbalanced rubber bellows seal is according to DIN EN 12756. The pump is fitted with a foot-mounted, fan-cooled asynchronous motor. Pump and motor are mounted on a common base frame. The motor includes a frequency converter and PI controller in the motor terminal box. This enables continuously variable control of the motor speed, which again enables adaptation of the performance to a given requirement.



More Information
Price £9,909.20
Manufacturer Grundfos
Warranty 1 year warranty
Electrical supply 400V
AC Power Three Phase
Flow Rate 1783 Ltr/min
Max Head 24.13 m
Water type Clean or Discoloured
Pump Type End Suction Pump
Duty Type Commercial
Submersible vs Surface Mounted Surface Mounted
Inlet Connection DN 100
Outlet Connection DN 80
Next Day Delivery No
Manufacturers Part Number 98973714
