Grundfos NBE 80-200/179AAF2AESBQQEJWA End Suction Pump - 400v - Three Phase - 1381 Ltr/min
Free Delivery Over £50

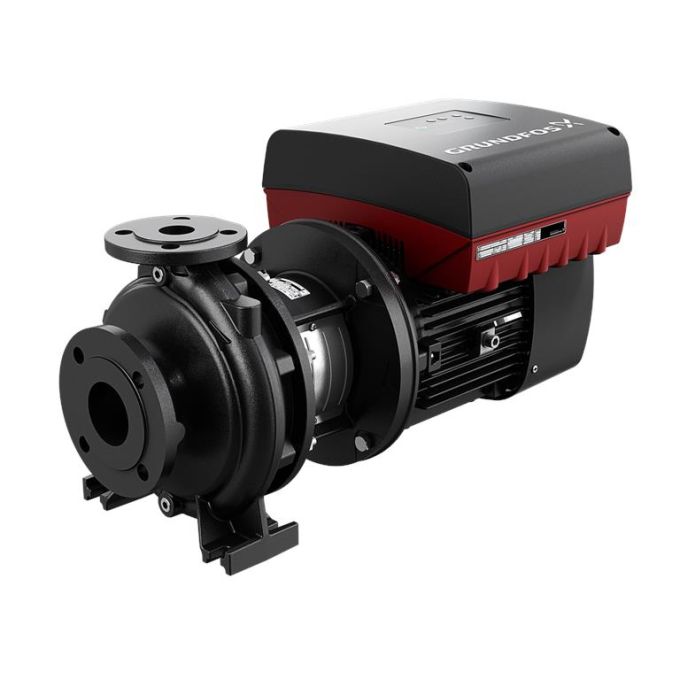

NBE 80-200/179 AAF2AESBQQEJWA
Non-self-priming, single-stage, centrifugal volute pump designed according to ISO 5199 with dimensions and rated performance according to EN 733 (10 bar). Flanges are PN 16 with dimensions according to EN 1092-2. The pump has an axial suction port, radial discharge port, horizontal shaft and a back pull-out design enabling removal of the motor, motor stool, cover and impeller without disturbing the pump housing or pipework. The unbalanced rubber bellows seal is according to DIN EN 12756. The pump is close-coupled to a fan-cooled, permanent-magnet synchronous motor. The motor includes a frequency converter and PI controller in the motor terminal box. This enables continuously variable control of the motor speed, which again enables adaptation of the performance to a given requirement.
Price | £4,200.70 |
---|---|
Manufacturer | Grundfos |
Warranty | 1 year warranty |
Electrical supply | 400V |
AC Power | Three Phase |
Flow Rate | 1381 Ltr/min |
Water type | Clean or Discoloured |
Pump Type | End Suction Pump |
Duty Type | Commercial |
Submersible vs Surface Mounted | Surface Mounted |
Next Day Delivery | No |
Manufacturers Part Number | 99105443 |
