Grundfos MIXIT 32-16 R F Complete Mixing Loop - 230v - Single Phase - 146 Ltr/min
This item is now obsolete. Please view our alternatives below.
Free Delivery Over £50
1 year warranty With This Product

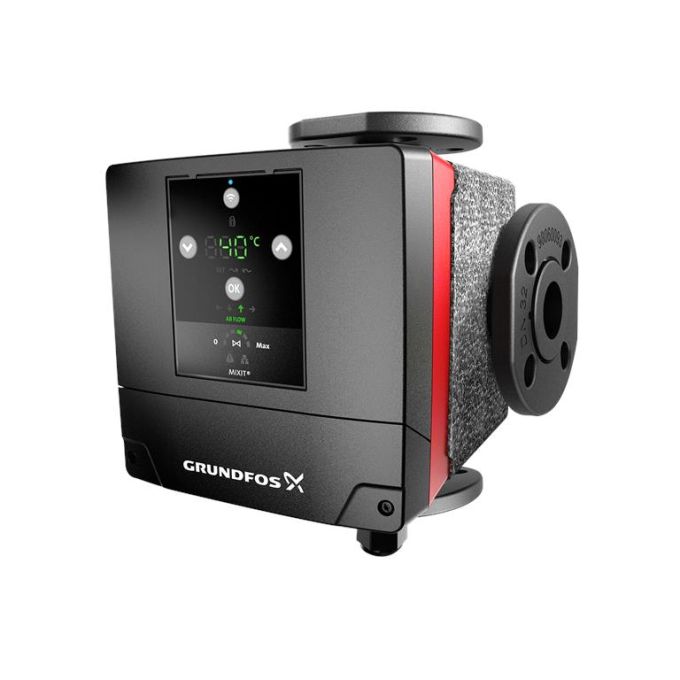

MIXIT 32-16 R F
Grundfos MIXIT is a pre-fabricated, complete mixing loop with integrated control functions designed for heating and cooling systems. MIXIT is mainly suited for three-way installations in large buildings, such as schools, with no need for monitoring, pressure independence or balancing. With MIXIT a complete mixing loop is built with only two components: a MIXIT valve unit and the best-in-class Grundfos MAGNA3 circulator pump.
Because MIXIT communicates wirelessly with MAGNA3, only two power cables are required for the MIXIT system to work. The compact design ensures a maximum utilisation of space and a tidy and compact installation.
MIXIT has an integrated actuator and controller and built-in flow and temperature sensors. Due to the uniquely designed valve and real-time sensor measurements, MIXIT ensures precise flow temperature control even at low flow. Threaded versions of MIXIT have an integrated, removable non-return valve. Non-return valves are available as an accessory for flange versions.
MIXIT is controlled via an intuitive operating panel and communicates wirelessly with Grundfos GO Remote for easy setup and control. MIXIT can be configured via three I/O terminals and two relay outputs.
The MIXIT system can operate as a standalone mixing loop in buildings without any additional equipment. Fieldbus (BACnet, Modbus or GENIbus) via Ethernet RJ45 and RS485 transceiver ensures easy BMS integration, allowing MIXIT to also work as a subsystem in larger buildings.
MIXIT offers all functions needed to tailor your mixing loop to your system, including the following:
|
MIXIT DYNAMIC also gives access to Grundfos BuildingConnect Free Monitoring, a real-time monitoring system with alarm and warning notifications.
MIXIT can be combined with the DYNAMIC and CONNECT upgrade.
| Price | £1,716.65 |
|---|---|
| Manufacturer | Grundfos |
| Warranty | 1 year warranty |
| Electrical supply | 230V |
| AC Power | Single Phase |
| Flow Rate | 146 Ltr/min |
| Water type | Clean or Discoloured |
| Pump Type | Mixing Loop |
| Duty Type | Commercial |
| Submersible vs Surface Mounted | Surface Mounted |
| Next Day Delivery | No |
| Connection Size | DN 32 |
| Connection Type | DIN |
| Manufacturers Part Number | 99508837 |
