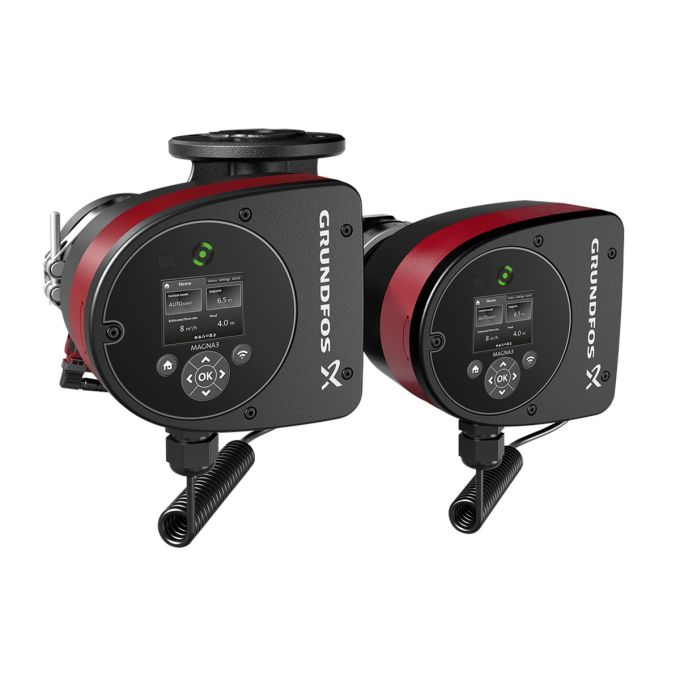

Grundfos Magna3 D 32-60F Circulator Pump - 220mm
This item is now obsolete. Please view our alternatives below.
Free Delivery Over £50
1 year warranty With This Product
MAGNA3 D 32-60 F
MAGNA3 – More than a pump With its unrivalled efficiency, all-encompassing range and built-in communication capabilities plus functionalities replacing system components, the MAGNA3 is ideal for engineers and specifiers looking to create high-performance systems for buildings. This pump in the Grundfos Master Class will fit both heating and cooling applications perfectly, making it the obvious choice for almost any building project – old or new.
The MAGNA3 is of the canned-rotor type, i.e. pump and motor form an integral unit without shaft seal and with only two gaskets for sealing. The bearings are lubricated by the pumped liquid. The innovative clamp with only one screw enables easy repositioning of the pump head. The MAGNA3 is a pump with no maintenance requirements and with extremely low Life Cycle Cost.
The pump is characterised by the following:
|
The MAGNA3 is a single-phase pump.
Characteristic features
|
Communication The MAGNA3 enables communication via the following:
|
Motor and electronic controller The MAGNA3 incorporates a 4-pole synchronous, permanent-magnet motor (PM motor). This motor type is characterised by higher efficiency than
| Price | £1,810.90 |
|---|---|
| Manufacturer | Grundfos |
| Warranty | 1 year warranty |
| Dimensions | 220mm (h) x 400mm (d) x 254mm (w) |
| Electrical supply | 230V |
| AC Power | Single Phase |
| Flow Rate | 144 Ltr/min |
| Water type | Clean or Discoloured |
| Pump Type | Circulator Pump |
| Switch | None |
| Duty Type | Domestic |
| Next Day Delivery | No |
| Port To Port | 220mm |
| Connection Size | DN32 |
| Connection Type | DIN |
| Manufacturers Part Number | 98333860 |
