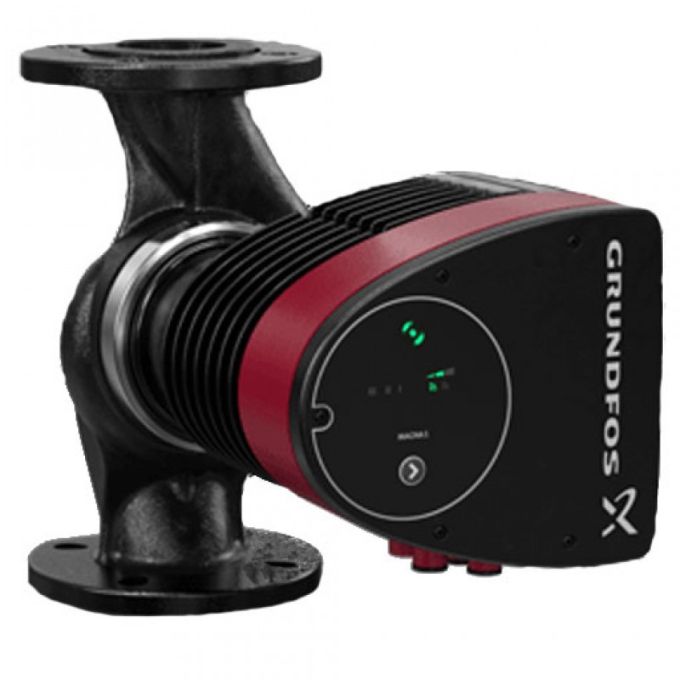

Grundfos Magna1 100-120F Variable Speed Circulator - 450mm - 230v
This item is now obsolete. Please view our alternatives below.
Free Delivery Over £50
1 year warranty With This Product
Grundfos Magna1 100-120F (450) ERP/EUP ready variable speed circulator. The Grundfos Magna1 100-120F (450) is a variable speed circulator which is used primarily for one and two-pipe heating systems. The Grundfos Magna1 range are energy efficient variable speed circulators which comply with ERP/EUP European legislation. NOTE: THIS PUMP HAS FLANGED CONNECTIONS
MAGNA1 circulator pump with easy selection of pump setting The pump is of the canned-rotor type, i.e. pump and motor form an integral unit without shaft seal and with only two gaskets for sealing. The bearings are lubricated by the pumped liquid. In order to avoid problems in connection with disposal, great importance has been attached to using as few different materials as possible. A pump with no maintenance requirements and extremely low life cycle cost.
Heating systems
• Main pump
• mixing loops
• heating surfaces
• air-conditioning surfaces.
The MAGNA1 circulator pumps are designed for circulating liquids in heating systems with variable flows where it is desirable to optimise the setting of the pump duty point, thus reducing energy costs. The pumps are also suitable for domestic hot-water systems. To ensure correct operation, it is important that the sizing range of the system falls within the duty range of the pump.
Benefits
• Safe selection.
• Simple installation.
• Low energy consumption. All MAGNA1 pumps comply with the EuP requirements.
• Nine light fields for indication of pump setting. Three proportional-pressure curves, three constant-pressure curves and three fixed-speed curves are available.
• Low noise level.
• No mainteance and long life
| Price | £3,229.20 |
|---|---|
| Manufacturer | Grundfos |
| Warranty | 1 year warranty |
| Impeller Type | Single |
| Electrical supply | 230V |
| AC Power | Single Phase |
| Speed | Variable |
| Flow Rate | 636 Ltr/min |
| Max Head | 12m |
| Pump Operation | Manual (without float switch) |
| Water type | Clean or Discoloured |
| Pump Type | Circulator Pump |
| Switch | None |
| Duty Type | Domestic |
| Submersible vs Surface Mounted | Surface Mounted |
| Next Day Delivery | No |
| Port To Port | 450mm |
| Manufacturers Part Number | 99221442 |
