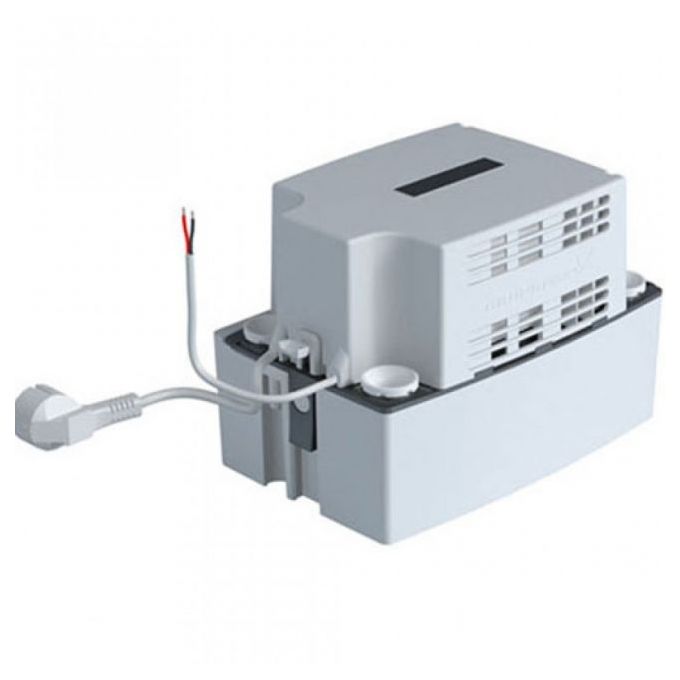

Grundfos Conlift 1 Automatic Condensate Removal Pump - 240v
This item is now obsolete. Please view our alternatives below.
Free Delivery Over £50
1 year warranty With This Product
Typical applications:
- Condensate boilers. A 200 kW boiler can be drained up to 5 m duty point
- For condensate with a pH value above 2.5
- For condensate from air-conditioning systems, cooling and refrigeration systems, air dehumidifiers and evaporators
- For condensate with a pH value below 2.5, useConlift2 pH+
Functions:
- Condensate runs by natural fall through a hose into the tank
- Liquid level in the tank is controlled automatically by a float switch
- Condensate is pumped through the discharge hose to the drain
- Safety overflow switch with a 1.7-metre electric cable which can be connected to the condensate boiler and set to stop the boiler in case of an alarm
- Maintenance-free shaded-pole motor
Features:
- Four inlets with grommets to seal and fix the inlet hose
- 180 °-rotatable flange for selection of optimum discharge position
- IP24 cover for protection against splashing water
- Two snap-fasteners enabling easy access to the tank in case of service
- Pump operation test button
- Stepped outlet socket for ∅8 and ∅10 mm hoses
- Non-return valve with bayonet connection for easy service
- Special inlet design preventing sedimentation and evaporation from boiler
- Stainless-steel motor shaft additionally protected by a shaft seal
- Self-venting hydraulics
- Rotating lip seal protecting bearing and motor against evaporation from tank
- Special float switch designed to prevent evaporation from tank and corrosion on micro switches
- Alignment wheel enabling easy adjustment in wall-hung installations
- Suitable for wall-hung and floor-standing installation
| Price | £111.01 |
|---|---|
| Manufacturer | Grundfos |
| Warranty | 1 year warranty |
| Dimensions | 183mm (h) x 165mm (w) x 258mm (d) |
| Electrical supply | 240V |
| AC Power | Single Phase |
| Flow Rate | 9.8 Ltr/min |
| Max Head | 5.7m |
| Pump Type | Multistage |
| Switch | None |
| Duty Type | Domestic |
| Submersible vs Surface Mounted | Surface Mounted |
| Next Day Delivery | Yes |
| Manufacturers Part Number | 97936173 |
