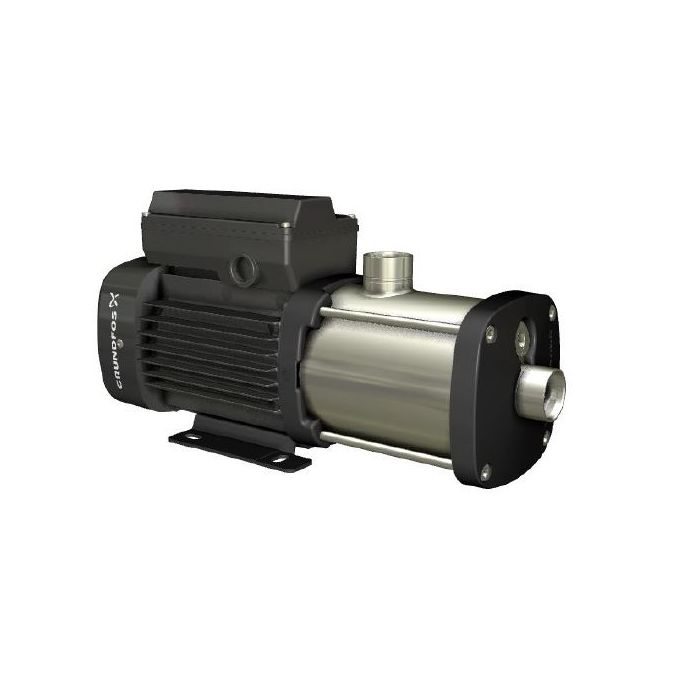

Grundfos CM 3-6 A-R-I-E-AQQE C-A-A-N Horizontal Booster Pump - 240v - OBSOLETE
This item is now obsolete. Please view our alternatives below.
Free Delivery Over £50
1 year warranty With This ProductLooking for an Alternative?

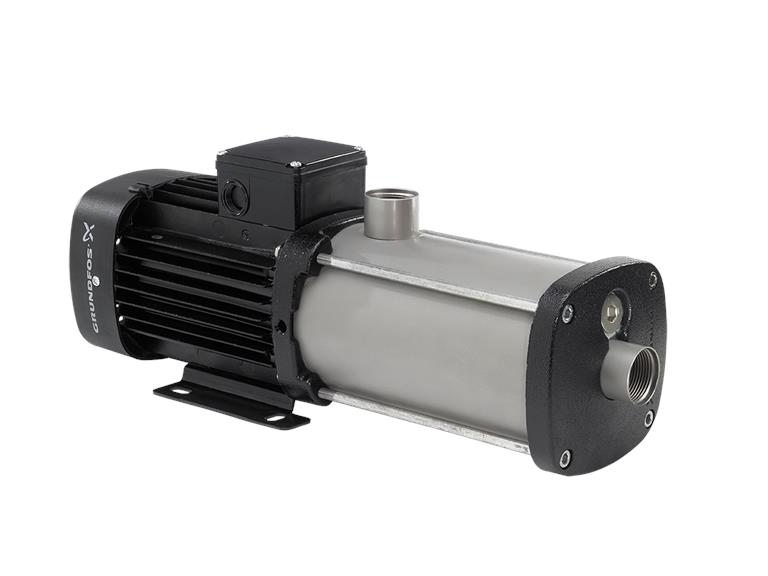

Grundfos CM 3-6 A-R-I-E-AQQE C1-A-A-N Horizontal Booster Pump - 230v - Single Phase
92889533
CM 3-6 A-R-I-E-AQQE C-A-A-N
Compact, reliable, horizontal, multistage, end-suction centrifugal pump with axial suction port and radial discharge port. Pump materials in contact with the liquid are in stainless steel. The mechanical shaft seal is a special designed, unbalanced O-ring seal. Pipework connection is via internal Whitworth pipe threads, Rp (ISO 7/1).
The pump is fitted with a 1-phase, foot-mounted, fan-cooled asynchronous motor.
| Controls: | ||
| Frequency converter: | NONE | |
| Liquid: | ||
| Pumped liquid: | Water | |
| Liquid temperature range: | -20 .. 120 °C | |
| Selected liquid temperature: | 20 °C | |
| Density: | 998.2 kg/m³ | |
| Technical: | ||
| Pump speed on which pump data are based: | 2900 rpm | |
| Rated flow: | 3.1 m³/h | |
| Rated head: | 41.53 m | |
| Code for shaft seal: | AQQE | |
| Approvals: | CE,WRAS,ACS,TR,EAC | |
| Curve tolerance: | ISO9906:2012 3B |
| Price | £758.28 |
|---|---|
| Manufacturer | Grundfos |
| Warranty | 1 year warranty |
| Dimensions | 208mm (h) x 158mm (w) x 417mm (d) |
| Impeller Stages | 6 |
| Electrical supply | 240V |
| AC Power | Single Phase |
| Speed | Fixed |
| Flow Rate | 51 Ltr/min |
| Max Head | 41m |
| Water type | Clean or Discoloured |
| Pump Type | End Suction Pump |
| Switch | None |
| Duty Type | Commercial |
| Submersible vs Surface Mounted | Surface Mounted |
| Inlet Connection | 1 inch |
| Outlet Connection | 1 inch |
| Next Day Delivery | No |
| Connection Size | 1 inch |
| Manufacturers Part Number | 97515032 |
