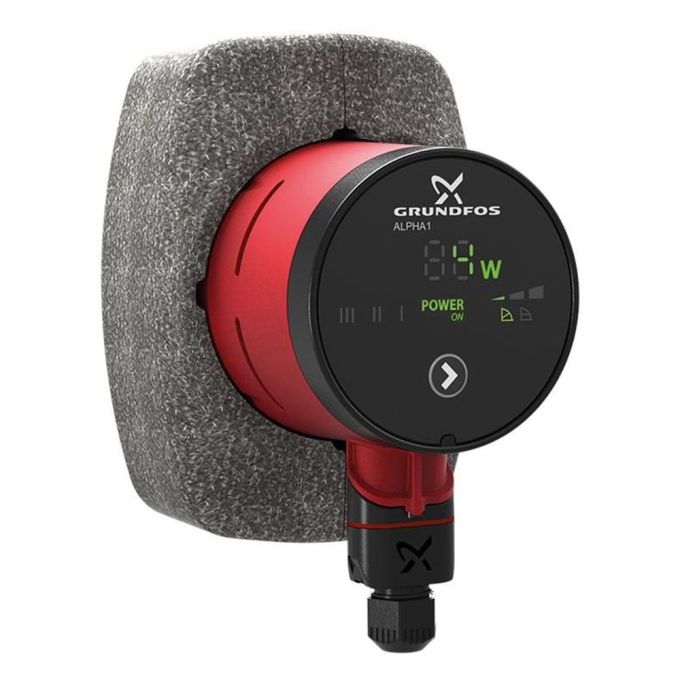

Grundfos ALPHA1 15-50 N 130 Hot Water Circulator - 240v

Part Number:
GR-99415696
This item is now obsolete. Please view our alternatives below.
£679.20 RRP £441.48 £367.90
In stock Hurry! Last Few Remaining

Free Delivery Over £50

Next Day Delivery Available

Designed for circulating liquids in heating systems. With an energy efficiency index (EEI) at the ErP benchmark for most efficient circulators it contributes to energy savings. The ideal choice for basic functionality needs.
1 year warranty With This Product

ALPHA1 15-50 N 130

Grundfos ALPHA1 pumps are high-efficiency circulators, designed for circulating liquids in heating systems. With an energy efficiency index (EEI) at the ErP benchmark for most efficient circulators it contributes to energy savings. The ideal choice for basic functionality needs.

Features

  • Intuitive one-button operation makes selection of any control mode simple
  • No external motor protection required reducing installation time
  • High-torque start improves startup under harsh conditions
  • Maintenance free and noiseless due to canned-rotor design and use of robust components
  • ALPHA plug makes electrical installation quick, safe and easy
  • Insulating shells are supplied with pumps to minimize heat loss in heating systems

The pump also features three control modes - each with three settings

  • proportional-pressure control
  • constant-pressure control
  • constant-curve mode

The display shows the actual power consumption in Watts. LEDs indicate the actual operating status.

The pump has a ceramic shaft and radial bearings, carbon thrust bearing, stainless-steel rotor can, bearing plate and rotor cladding, composite impeller, all of which contribute to long life. The pump is self-venting through the system, which contributes to easy commissioning. The compact design featuring pump head with integrated control box and control panel fits into most common installations.

The pump housing is made of stainless steel for applications where the media requires this, e.g. avoiding corrosion when used in domestic hot-water systems.

The motor is a synchronous permanent-magnet/compact-stator motor characterized by high efficiency. The pump speed is controlled by an integrated frequency converter incorporated in the control box.

More Information
Price £367.90
Manufacturer Grundfos
Warranty 1 year warranty
Electrical supply 240V
AC Power Single Phase
Water type Clean or Discoloured
Pump Type Circulator Pump
Switch None
Duty Type Domestic
Next Day Delivery Yes
Port To Port 130mm
Connection Size 1 1/2 inch
Manufacturers Part Number 99415696
