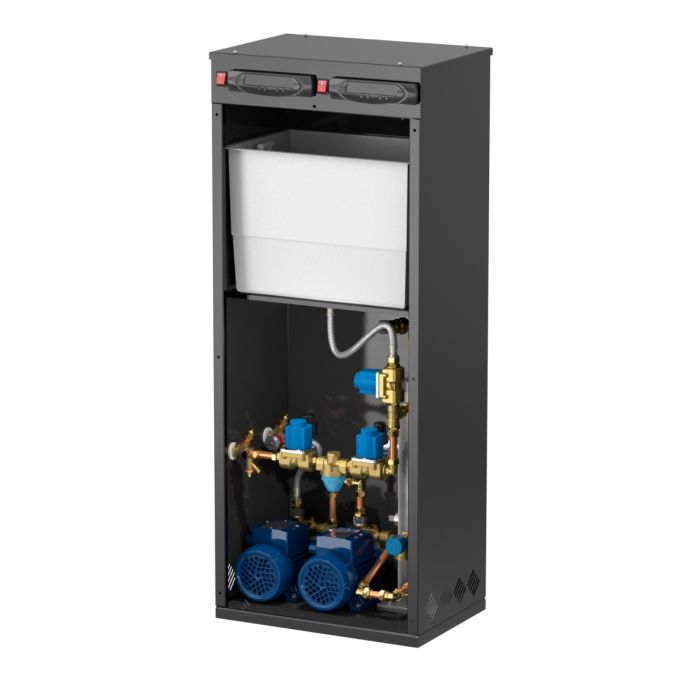

Flamco Flexfiller Plus 250D Digital Pressurisation Unit - Floor Mounted - 6 bar
This item is now obsolete. Please view our alternatives below.
Free Delivery Over £50
1 year warranty With This Product
Compact, totally enclosed combined digital pressurisation units. System fluid is sampled from the system, isolated and subjected to a full vacuum. All dissolved air within the sample is liberated in accordance with Henry’s Law and vented to atmosphere. The deaerated fluid is then reintroduced to the system. This process is automatically repeated and controlled with a digital processor. A turbo mode is available for initial system setup to allow for rapid deaeration of new installations. The real-time display shows the status of the mechanical components.
The Flexfiller Plus and Midifill Plus are compact, totally enclosed combined digital pressurisation units wit h vacuum degasser for use on sealed systems in order to provide a minimum system pressure requirement and effective dissolved gas removal.
System Volume (Guide): < 300,000 litres (Midifill Plus 150D: < 50,000 litres).
Applications:
- Commercial and Industrial
Product Features:
- For system volumes up to 300,000 Litres (midfull plus 150D: < 50,000 Litres)
- Available with single pump (Midfull Plus) or double pump (for duty/standby configuration)
- Fluid Protection Category 5 (AB Weir Overflow)
- Onscreen service reminder - 12 Months
- Individual controllers for pressurisation and degassing function
- Vacuum degassing, turbo and normal interval modes
- Electric pump, 230V / 50Hz / 1 PH (2150D: 415V / 50Hz / 3PH)
- Colour: Midifill Plus: White (RAL 9003), Flexfiller Plus: Black (RAL 9005).
- MODBUS RTU Communication Protocol.
- System fill mode.
- Password Protected
- Pressure setting in 0.1 bar increments
- Sequential programming menu.
- Pump pulse option
- Flood Protection (Pump Runtime Limiter, Excessive Start Alarm).
- Event logging: Alarm activations, Pump Run counter (activations per pump), Cumulative run timer (hours per pump), Electrical interuption.
- Volt free contacts: Common Alarm (N/C), High Pressure Alarm (N/O), Low Pressure Alarm (N/O), Sensor Health (N/O), Pump 1 Health (N/O), Pump 2 Health (N/O).
| Price | £5,279.25 |
|---|---|
| Manufacturer | Flamco |
| Warranty | 1 year warranty |
| Duty Type | Commercial |
| Pump Type | Pressurisation Unit |
| Next Day Delivery | Yes |
| Manufacturers Part Number | 45045 |
