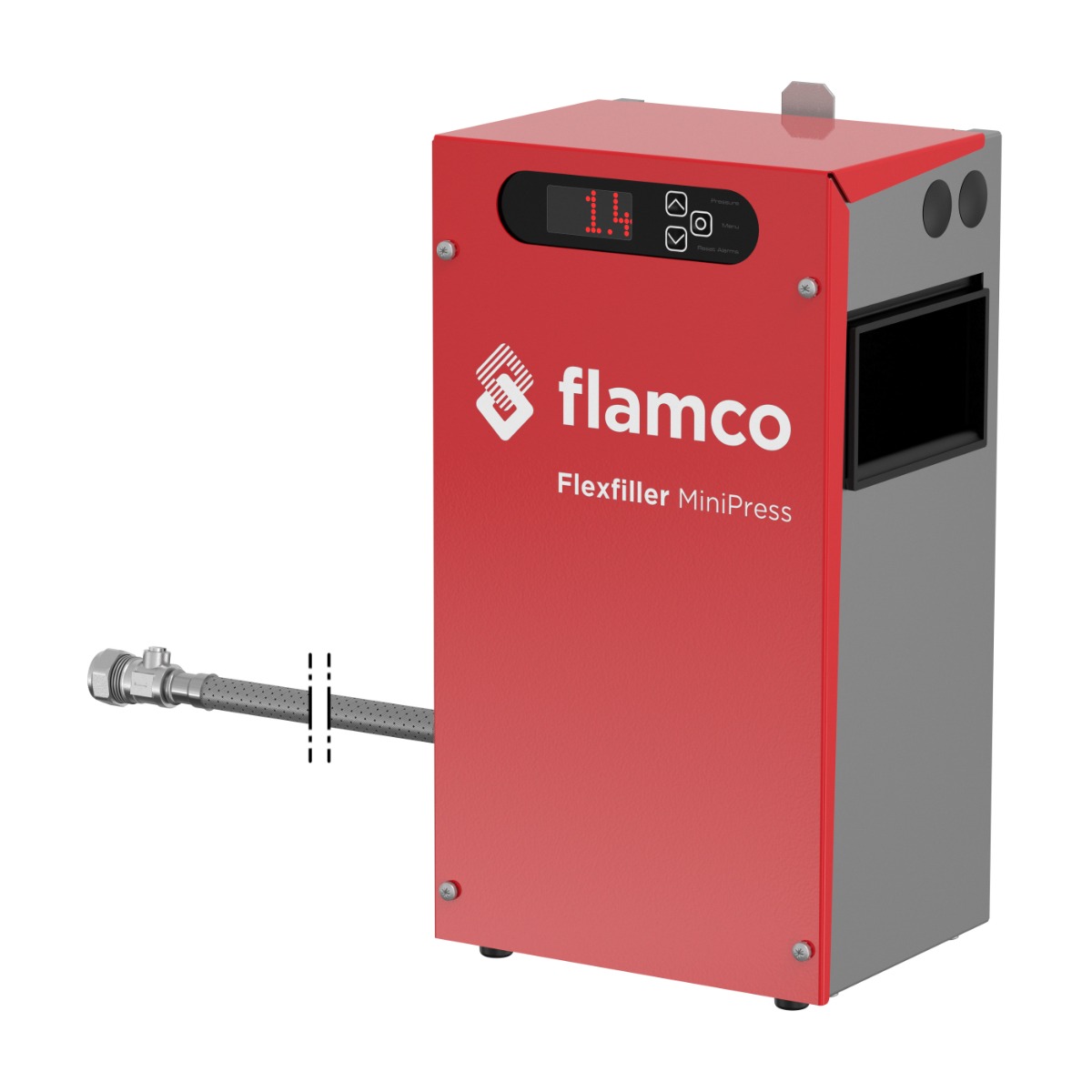

Flamco Flexfiller Mini 130D Pressurisation Unit - Digital - Single Pump
This item is now obsolete. Please view our alternatives below.
Free Delivery Over £50
1 year warranty With This Product
Compact and totally enclosed digital pressurisation units with electronic pressure transducer and user-friendly microprocessor for use on sealed system in order to provide a minimum system pressure requirement.
The Flexfiller Mini Digital is a slim wall mounted, low flow rate (0.4 l/min) top-up pressurisation unit with 2 litre internal break tank. Ideal for small commercial or large domestic applications. For use on heating systems utilising a 300 litre expansion vessel or less, or chilled systems utilising a 50 litre expansion vessel or less. Available in single or twin pump configuration.
Product Features:
- For system volumes up to 2,600 litres.
- Fluid Protection Category 5 (AB Weir Overflow).
- Onscreen Service Reminder - 12 Months.
- Electric pump, 230V 50Hz 1ph.
- Colour: White (RAL 9003).
- MODBUS RTU Communication Protocol.
- Password protected.
- Sequential programming menu.
- Pressure setting in 0.1 bar increments.
- Pump pulse option.
- Flood Protection (Pump Runtime Limiter, Excessive Start Alarm).
- Event logging: Alarm activations, Pump Run counter (activations per pump), Cumulative run timer (hours per pump), Electrical interuption.
- Volt free contacts: Common Alarm (N/C), High Pressure Alarm (N/O), Low Pressure Alarm (N/O), Sensor Health (N/O), Pump 1 Health (N/O), Pump 2 Health (N/O).
Operating Conditions:
- System temperature range at point of connection: 5 ºC / 85 ºC.
- Ambient temperature range: 5 ºC / 40 ºC.
- Pressure rating: PN 10.
- Relative humidity 95% non-condensing.
- Noise Rating Data: < 75 dBA.
Certifications and Standards Applied:
- PED 2014/68/EU Sound Engineering Practice.
- IEE - Electrical Safety Guidance.
- EMC 2004/108/EC.
- BS 7074 Parts 1 to 3.
- Machinery Directive 2006/42/EC.
- Electronic Components have been tested and comply with the EMC Directives.
- EN 61000-6-1: Generic Standards – Immunity standard for industrial environments.
- EN 61000-6-2: Generic Standards – Immunity standard for industrial environments.
- EN 61000-6-3: Generic Standards – Emission standard for residential, commercial and light industrial environment.
- CE marked components, where applicable.
- WRAS approved float valve to BS1212.
- IP54 (BS EN60529) rated controller.
| Price | £759.00 |
|---|---|
| Manufacturer | Flamco |
| Warranty | 1 year warranty |
| Dimensions | D150 x W240 x H480mm |
| Bars | 3 bar |
| Electrical supply | 230V |
| AC Power | Single Phase |
| Switch | None |
| Duty Type | Commercial |
| Pump Type | Pressurisation Unit |
| Next Day Delivery | Yes |
| Manufacturers Part Number | 17455 |
