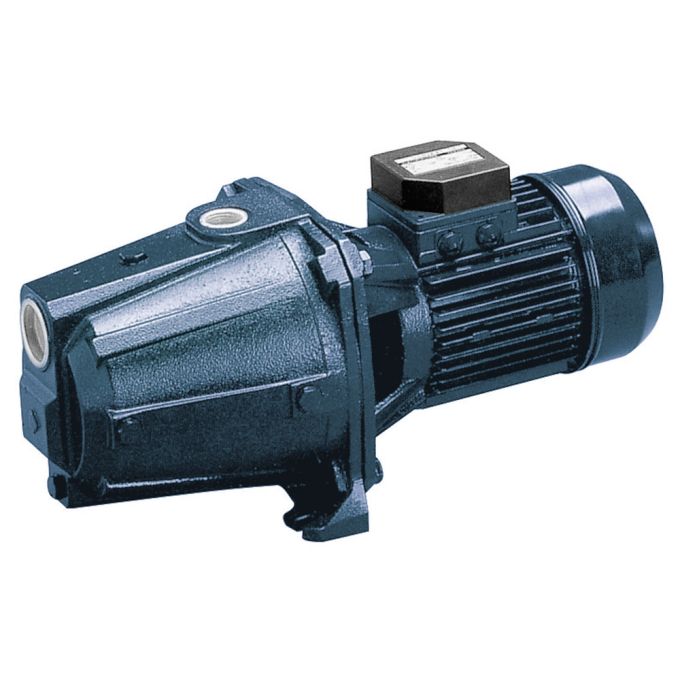

Ebara AGC/I 3.00 T IE3 Self-Priming Centrifugal Pump - 400v - Three Phase
This item is now obsolete. Please view our alternatives below.
Free Delivery Over £50
1 year warranty With This Product
The Ebara AGA - AGC electric pumps are self-priming cast iron electric pumps equipped with Venturi group
(ejector and diffuser) in PPE + PS reinforced with glass fibres. Practical, easy to use and easily transportable thanks to their low weight. The pump body is made of cast iron for all models. Among
their peculiarities is that of having a shaft in steel AISI 303 (for the part in contact with the liquid).
The impellers are available in PPE + PS reinforced with glass fibres for AGA 0.60 - 0.75 - 1.00 and in brass for the rest of the range. The mechanical seal is in Ceramic/Carbon/NBR. The self-ventilated 2-pole asynchronous motors are IE3 high energy efficiency starting from 0.75 kW.
PUMP TECHNICAL DATA
• Total head from 16.5 to 68 m
• Capacity from 0.3 to 9.6 m3/h
• Maximum operating pressure:
- 6 bar for AGA 0.60 - 0.75 - 1.00
- 10 bar for the rest of the range
• Maximum liquid temperature 45°C
• Maximum working width 8 m
| Price | £482.36 |
|---|---|
| Manufacturer | Ebara |
| Warranty | 1 year warranty |
| Impeller Type | Single |
| Electrical supply | 400V |
| AC Power | Three Phase |
| Flow Rate | 100 Ltr/min |
| Water type | Clean or Discoloured |
| Duty Type | Domestic |
| Submersible vs Surface Mounted | Surface Mounted |
| Pump Type | Centrifugal Pump |
| Inlet Connection | G1 1/2" |
| Outlet Connection | G1" |
| Next Day Delivery | No |
| Manufacturers Part Number | 1120300004I |
