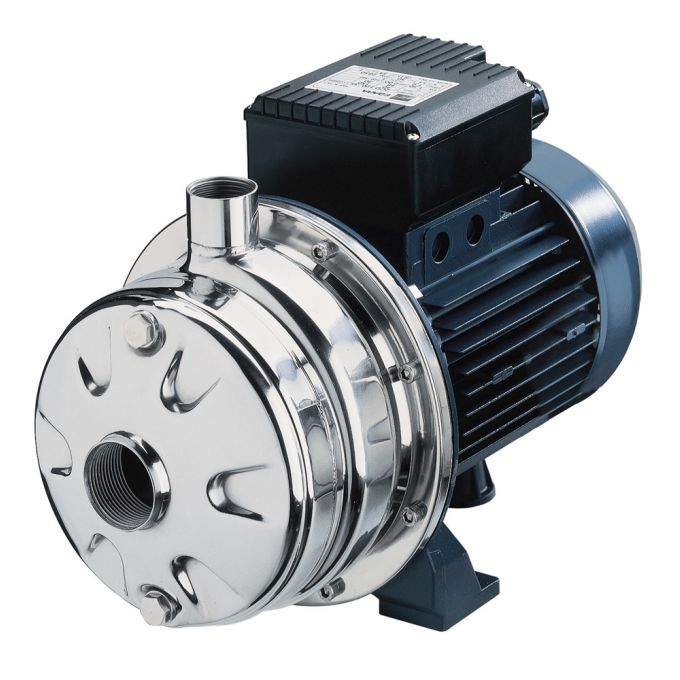

Ebara 2CDXL/I 120/20 IE3 Centrifugal Pump - 400v - Three Phase - 150 Ltr/min
This item is now obsolete. Please view our alternatives below.
Free Delivery Over £50
1 year warranty With This Product
Ebara 2CDX(L) are surface centrifugal electric pumps with double radial impeller, with the hydraulics completely in molded AISI 304 or AISI 316 (version L), whose components are obtained through the hydroforming process, which guarantees strength, hydraulic efficiency and reliability.
2CDX(L) model is suitable for different uses ranging from domestic pressurisation to small irrigation, from water treatment plants to evaporative towers; therefore for handling clean water in general.
The double impeller makes it possible to expand the performance range with respect to the single
impeller version. The standard mechanical seal is made of Ceramic/Carbon/NBR, but several special seals are available.
PUMP TECHNICAL DATA
• Total head from 71.5 to 27 m
• Flow rate 1.2 to 12.6 m3/h
• IE3 high efficiency motors starting from 0.75 kW
• Liquid temperature -5°C ÷ +60°C (from -15°C to
+110°C for H, HS, HW and HSW versions)
| Price | £1,010.76 |
|---|---|
| Manufacturer | Ebara |
| Warranty | 1 year warranty |
| Impeller Type | Twin |
| Electrical supply | 400V |
| AC Power | Three Phase |
| Flow Rate | 150 Ltr/min |
| Water type | Clean or Discoloured |
| Duty Type | Commercial |
| Submersible vs Surface Mounted | Surface Mounted |
| Pump Type | Centrifugal Pump |
| Inlet Connection | UNI ISO 228-1 |
| Outlet Connection | UNI ISO 228-1 |
| Next Day Delivery | No |
| Manufacturers Part Number | 1621208004I |
