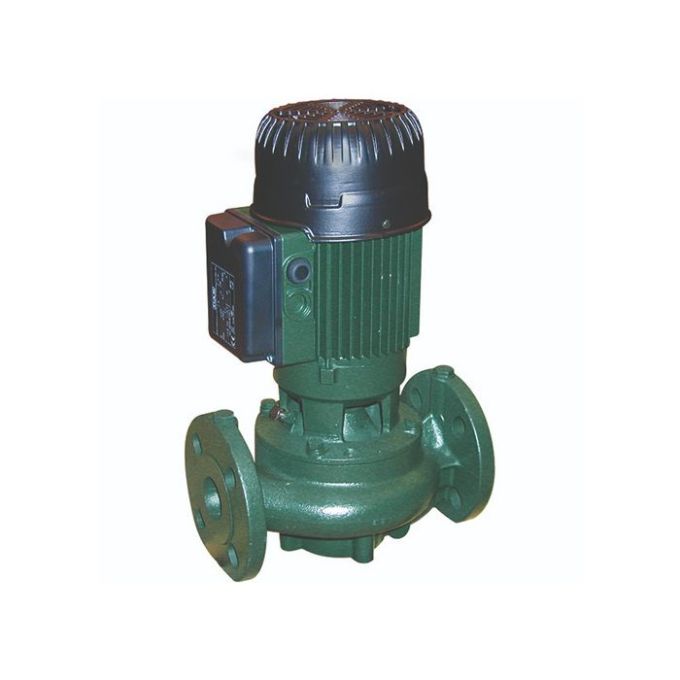

DAB KLM 80-300 T In-Line Circulator Pump - 415v - Three Phase - 1534 Ltr/min

Part Number:
105110134
This item is now obsolete. Please view our alternatives below.
£1,900.70 RRP £11,998.80 £9,999.00

Free Delivery Over £50

The DAB KLM 80-300 T In-Line Circulator Pump has been designed for circulation of hot or cold water and is suitable for direct installation on the pipework of civil and industrial heating, air conditioning, refrigeration and sanitary water systems.
1 year warranty With This Product

Applications

The DAB KLM 80-300 T In-Line Circulator Pump has been designed for circulation of hot or cold water and is suitable for direct installation on the pipework of civil and industrial heating, air conditioning, refrigeration and sanitary water systems.

Construction Features Of The Pump

Pump body and motor support in cast iron.
PN 10 flanged suction and delivery ports with threaded holes for control manometers. To make replacement in existing systems easier, the pump can accept PN 6 counter flanges.
Technopolymer impeller. Carbon/ceramic mechanical seal.
The pumps are available both in the single (KLM-KLP) and in the twin (DKLM-DKLP) versions.
For the twin version a built in clapet valve in the delivery port is also included, to avoid water recirculation when the unit is idle. A blind flange is also supplied as a standard, to be used during maintenance of one of the two motors.
The twin version gives the possibility of alternating the operation of the pumps when a backup unit is required, or to have the two pumps operating simultaneously.

Construction Features Of The Motor

External ventilation cooling, closed, asynchronous type, with four poles for the KLM and DKLM versions, and two poles for the KLP and DKLP versions.
Rotor running on permanently lubricated ball bearings, oversized to ensure low noise and durability.
Standard built-in thermo-amperometric protection. Capacitor permanently fitted on single phase versions.
For the protection of the three-phase motor, we recommend the use of remote overload cut-outs, in compliance with current local regulations.
Construction according to CEI 2-3.
Protection class: IP 55
Insulation class: F
Standard voltage: single-phase 220-240 V, 50 Hz - three-phase 230/400 V, 50 Hz

More Information
Price £9,999.00
Manufacturer Dab
Warranty 1 year warranty
Electrical supply 400V
AC Power Three Phase
Flow Rate 1534 Ltr/min
Max Head 67m
Water type Clean or Discoloured
Pump Type Circulator Pump
Duty Type Commercial
Submersible vs Surface Mounted Surface Mounted
Next Day Delivery No
Manufacturers Part Number 105110134
