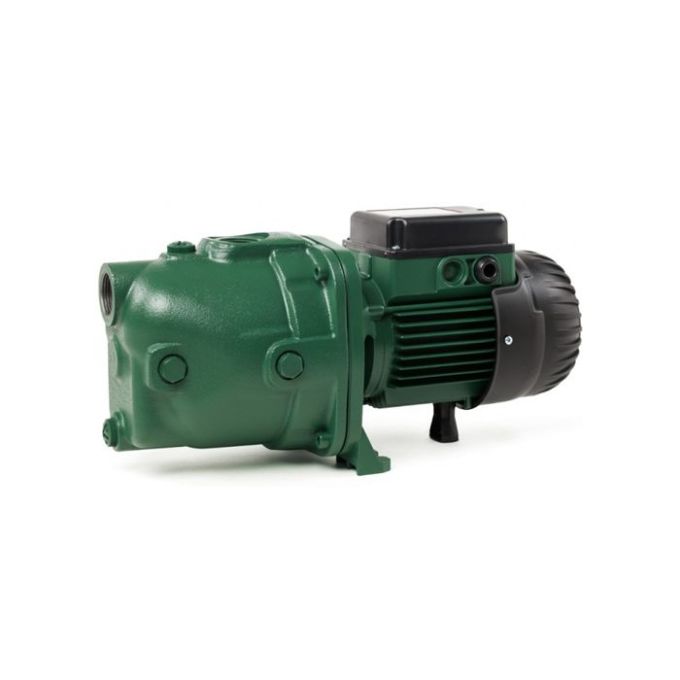

DAB JET 82 M Self-Priming Centrifugal Pump - 240v - Single Phase - 175 Ltr/min

Part Number:
102660020
This item is now obsolete. Please view our alternatives below.
£335.70 RRP £268.56 £223.80

Free Delivery Over £50

The DAB Jet 82 M is a self-priming centrifugal pump with excellent suction capacity even when there are air bubbles and small particles of sand in the water. Used especially for supplying water to domestic installations. Ideal for use in small-scale agriculture and gardening,... Read More
1 year warranty With This Product

Applications

The DAB Jet 82 M is a self-priming centrifugal pump with excellent suction capacity even when there are air bubbles and small particles of sand in the water.

Used especially for supplying water to domestic installations. Ideal for use in small-scale agriculture and gardening, limited industrial services and wherever self-priming operation is necessary.

Construction Features Of The Pump

Cast iron pump body and motor support.
Motor support in die-cast aluminium for Jet 62-82-102-112-92-132.
Technopolymer impeller, diffuser, Venturi tube and sand guard.
Stainless steel pressure discs.
Carbon/ceramic mechanical seal.

Construction Features Of The Motor

Induction motor, closed and cooled with external ventilation.
Rotor mounted on oversized greased sealed-for-life ball bearings to ensure silent running and long life.
Built-in thermal and current overload protection and a capacitor permanently in circuit in the single-phase version.
Three-phase motors should be protected with a suitable overload protection complying with the regulations in force.
Manufactured according to CEI 2-3 and CEI 61-69 standards (EN 60335-2-41).
Motor protection: IP44
Terminal box protection: IP55
Insulation class: F

More Information
Price £223.80
Manufacturer Dab
Warranty 1 year warranty
Electrical supply 240V
AC Power Single Phase
Flow Rate 175 Ltr/min
Max Head 62m
Water type Clean or Discoloured
Duty Type Commercial
Submersible vs Surface Mounted Surface Mounted
Pump Type Centrifugal Pump
Next Day Delivery No
Manufacturers Part Number 102660020
