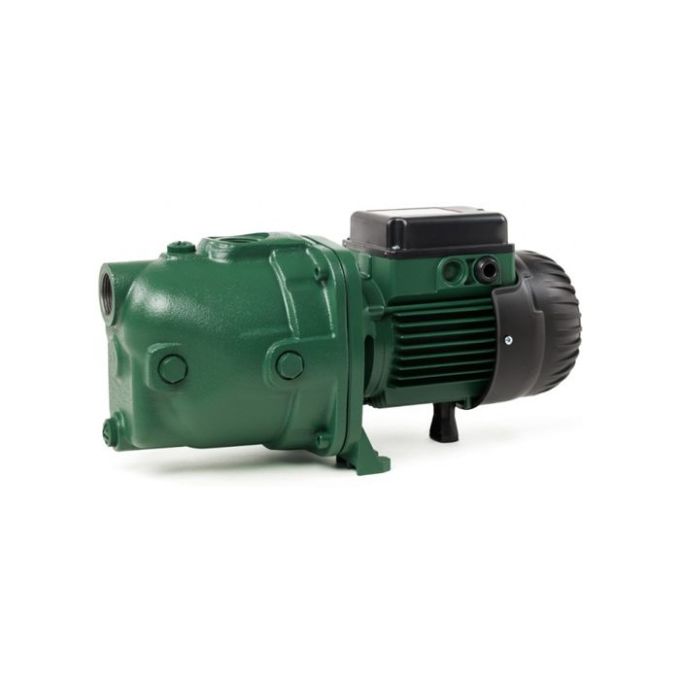

DAB JET 151 T-IE3 Self-Priming Centrifugal Pump - 415v - Three Phase - 175 Ltr/min

Part Number:
60179886
This item is now obsolete. Please view our alternatives below.
£823.26 RRP £658.61 £548.84

Free Delivery Over £50

The DAB JET 151 is a self-priming centrifugal pump with excellent suction capacity, Even where there are air bubbles and small particles of sand in the water.  The DAB JET 151 is especially suitable for supplying water to domestic installations, It's also ideal for small-scale... Read More
1 year warranty With This Product

Applications

The DAB JET 151 is a self-priming centrifugal pump with excellent suction capacity, Even where there are air bubbles and small particles of sand in the water.

The DAB JET 151 is especially suitable for supplying water to domestic installations, It's also ideal for small-scale agricultural and gardening installations, Even limited industrial applications where a small self-priming peripheral type pump is required.

Construction Features Of The Pump

Cast iron pump body and motor support.
Motor support in die-cast aluminium for Jet 62-82-102-112-92-132.
Technopolymer impeller, diffuser, Venturi tube and sand guard.
Stainless steel pressure discs.
Carbon/ceramic mechanical seal.


Constructional features of the motor

Induction motor, closed and cooled with external ventilation.
Rotor mounted on oversized greased sealed-for-life ball bearings to ensure silent running and long life.
Built-in thermal and current overload protection and a capacitor permanently in circuit in the single-phase version.
Three-phase motors should be protected with a suitable overload protection complying with the regulations in force.
Manufactured according to CEI 2-3 and CEI 61-69 standards (EN 60335-2-41).
Motor protection: IP44
Terminal box protection: IP55
Insulation class: F

More Information
Price £548.84
Manufacturer Dab
Warranty 1 year warranty
Electrical supply 400V
AC Power Three Phase
Flow Rate 175 Ltr/min
Max Head 62m
Water type Clean or Discoloured
Duty Type Commercial
Submersible vs Surface Mounted Surface Mounted
Pump Type Centrifugal Pump
Next Day Delivery No
Manufacturers Part Number 60179886
