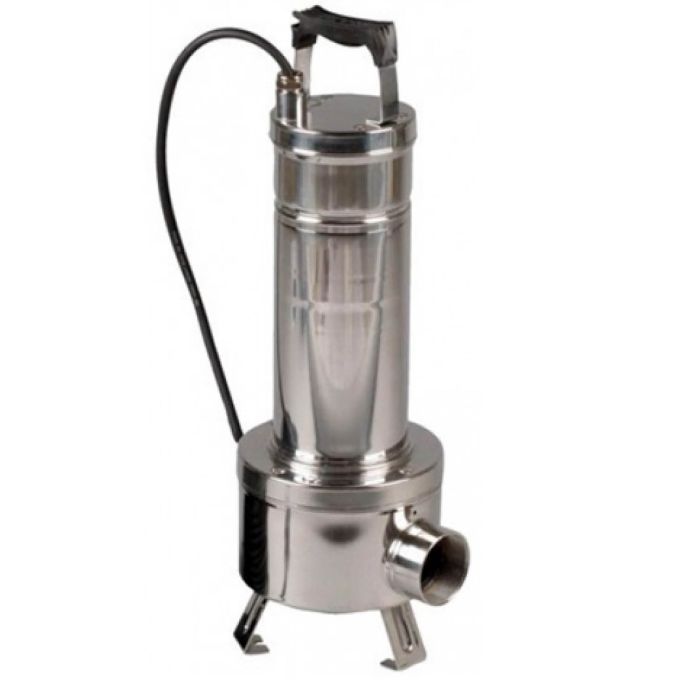

DAB FEKA VS 750 M-NA Submersible Pump - Manual - 230v
This item is now obsolete. Please view our alternatives below.
Free Delivery Over £50
1 year warranty With This Product
Technical data
- Motor is dry, asynchronous, sealed and cooled by the pumped liquid
- Rotor mounted on greased for-life ball bearings, oversized and selected to guarantee greater noise reduction and duration.
- Thermo-amperometric protection as standard for single-phase version, and the user’s responsibility for the three-phase version
- Constantly active capacitor on the single-phase version
- Construction in accordance with the IEC 2-3 IEC 61-69 (EN 60335-2-41) standards
- Motor protection class: IP 68 – Insulation class: F
- Standard voltage: 220-240V 50Hz Single-phase – 400V 50Hz Three-phase
- Continual running with liquid at 35°C and pump completely submerged
- The single-phase version can be supplied with float for automatic function
- Power supply cable: 10 metres of H07RN-F cable (with Shuko plug for the single-phase version)
Features and benefits
- Maximum flow 533 litres per minute, maximum head 14m
- 50mm free passage
- EN 12050-2 Compliance – certified for waste water
- Suitable for sewer water and waste water in general and non aggressive
- Pump body, seal housing cover, motor casing, cap with handle made of stainless steel
- Vortex impeller in cast steel
- Maximum immersion depth 10m
- Available in 230v manual and automatic and 415v manual
- 2 inch horizontal discharge, female threaded BSP connection
- Two year warranty
| Price | £429.71 |
|---|---|
| Manufacturer | Dab |
| Warranty | 1 year warranty |
| Electrical supply | 230V |
| AC Power | Single Phase |
| Cable length | 10m |
| Flow Rate | 533 Ltr/min |
| Max Head | 14m |
| Pump Operation | Manual (without float switch) |
| Water type | Sewage |
| Pump Type | Submersible |
| Switch | None |
| Duty Type | Domestic |
| Submersible vs Surface Mounted | Submersible |
| Next Day Delivery | No |
| Manufacturers Part Number | 103042330 |
