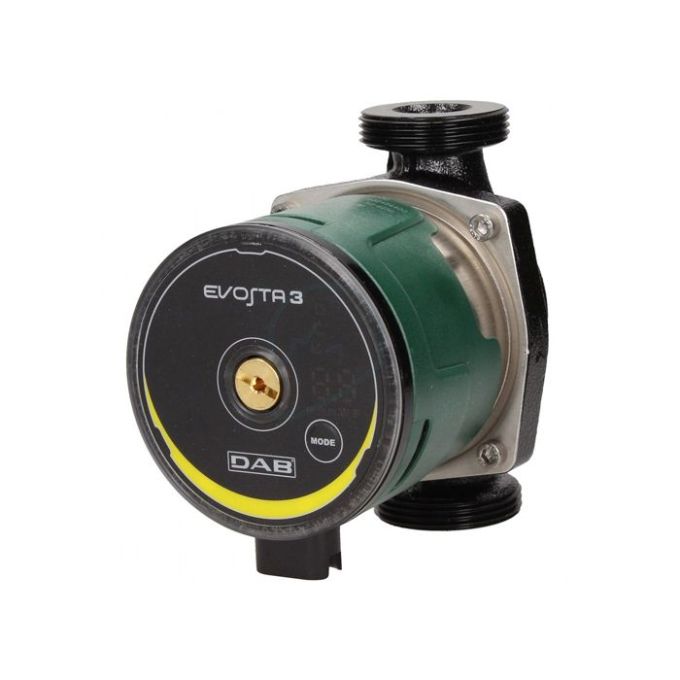

DAB Evosta3 80/180 Domestic Heating Circulator Pump - 240v - Single Phase - 70 Ltr/min
This item is now obsolete. Please view our alternatives below.
Free Delivery Over £50
1 year warranty With This Product
DAB first smart heating circulator pump, offers unique features thanks to the new DAB 4.0 in terms of assisting the installer and improving the performance of the domestic cooling or heating systems. Combining the strength of an mechanical circulator with the benefits of the electronic circulator.
IPX5 certified degree of protection prevents infiltration of water in the mechanics and electronics mean faults are reduced to a minimum.
Designed with front electronics, the new user interface with illuminated display and sequential button with immediate feedback makes easier the setting and readability under all conditions. The EVOSTA 3 version has a display showing the instantaneous flow rate, the instantaneous head and the instantaneous power consumption in Watts. The pumps have nine settings that can be selected scrolling the MODE button. Three LED lights on the facia show the current setting.
Easy access to the airvent plug providing access to the shaft for unblocking in case of seizure and automatic degassing.
The range of EVOSTA 3 circulators is the perfect replacement for old three-speed circulators due to its compact size and all-round performance. The circulator can now be replaced easily: the new interchangeable power connector of the Evosta 3 range can be used with connection plugs of other competitors without the need to rewire all the electrical connections. Even the most awkward replacement is now quick and easy.
Construction Features
Cast iron pump body with cataphoresis paint coating and wet rotor motor. Steel motor casing, technopolymer impeller. Ceramic motor shaft on ceramic bushings lubricated by the pumped liquid. Stainless steel rotor liner, stator liner and closing flange. Graphite thrust ring. EPDM seal ring and brass bleeding plug. Thanks to the internal protection of the motor, the pump does not require any overload protection.
Suitable for pumped liquids clean, free of solids and mineral oils, non-viscous, chemically neutral, with properties similar to water (glycol max 30%)
| Price | £135.00 |
|---|---|
| Manufacturer | Dab |
| Warranty | 1 year warranty |
| Electrical supply | 240V |
| AC Power | Single Phase |
| Cable length | 1.5m |
| Flow Rate | 70 Ltr/min |
| Max Head | 6m |
| Water type | Clean or Discoloured |
| Pump Type | Circulator Pump |
| Duty Type | Domestic |
| Submersible vs Surface Mounted | Surface Mounted |
| Next Day Delivery | Yes |
| Port To Port | 180mm |
| Connection Size | DN25 THREADED ( G 1” ½) |
| Manufacturers Part Number | 60185505 |
