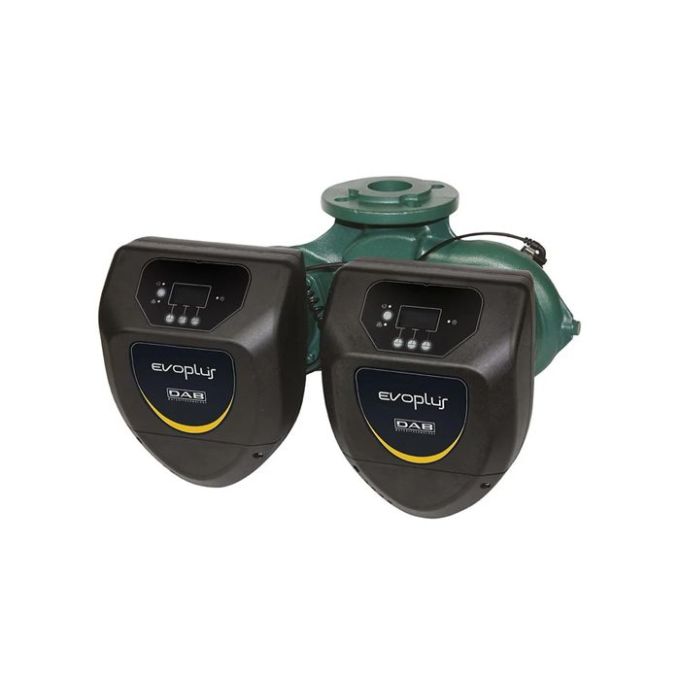

DAB EVOPlus D 60/240.50 M Twin Head Circulatpr Pump - 240v - Single Phase - 400 Ltr/min
This item is now obsolete. Please view our alternatives below.
Free Delivery Over £50
1 year warranty With This Product
Applications
The DAB EvoPlus D 60/240.50 M is a twin head circulator pump designed for the circulation of water in air conditioning and heating systems in commercial building service.
Construction Features Of The Pump
Compact circulation pump with cast iron hydraulic part. Flanged in-line suction and delivery ports. The single version is fitted with insulation shells. Techno polymer impeller.
Construction Features Of The Motor
Synchronous electric motor with wet rotor and permanent magnet. Hardened stainless steel motor shaft mounted on ceramic bushings lubricated by the pumped liquid. Aluminum motor casing.
Construction Features Of The Electronics
Incorporates an OLED display and four configuration keys. Circulator status notification LED, alarm LED. Inverter function.
Six adjustment parameters: proportional differential pressure, constant differential pressure, constant curve adjustment, constant and proportional differential pressure in relation to water temperature, and economy function that reduces the value of all the settings to 50%.
Connection to control systems via external signal 0-10 v is possible. or with PWM and connection to ModBus system management systems, LonBus with special additional communication module, with use of the optional multi-function module, supplied as standard in the twin version.
| Price | £2,904.07 |
|---|---|
| Manufacturer | Dab |
| Warranty | 1 year warranty |
| Electrical supply | 240V |
| AC Power | Single Phase |
| Cable length | 1.5m |
| Flow Rate | 400 Ltr/min |
| Max Head | 6m |
| Water type | Clean or Discoloured |
| Pump Type | Circulator Pump |
| Duty Type | Commercial |
| Submersible vs Surface Mounted | Surface Mounted |
| Next Day Delivery | No |
| Connection Size | DN50 Flanged |
| Connection Type | Flanged |
| Manufacturers Part Number | 60151009 |
