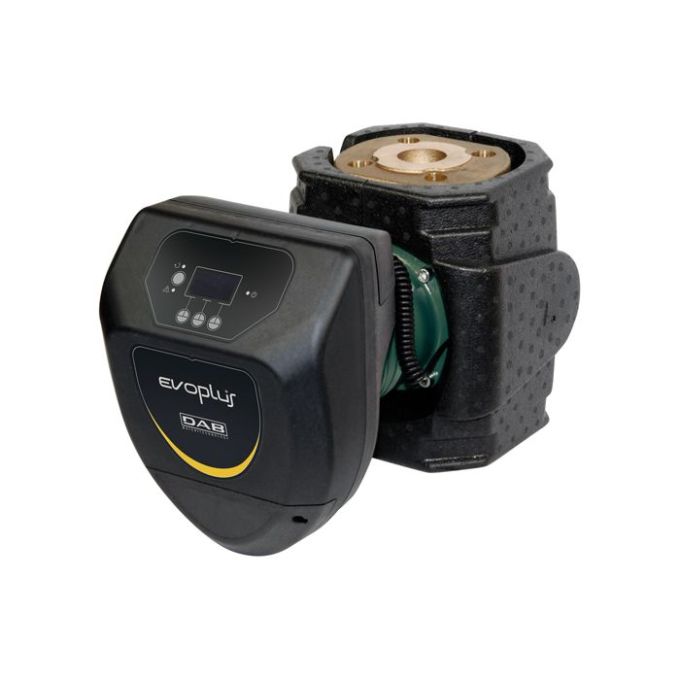

DAB EVOPlus B 120/220.32 SAN M Circulator Pump - 240v - Single Phase - 300 Ltr/min

Part Number:
60151163
This item is now obsolete. Please view our alternatives below.
£2,792.70 RRP £2,234.16 £1,861.80

Free Delivery Over £50

Compact wet rotor electronic circulator with bronze pump body designed for the circulation of domestic hot water in commercial building service. It is equipped with an integrated variable frequency drive to ensure better all-round performance and energy efficiency, it also... Read More
1 year warranty With This Product

Compact wet rotor electronic circulator with bronze pump body designed for the circulation of domestic hot water in commercial building service. It is equipped with an integrated variable frequency drive to ensure better all-round performance and energy efficiency, it also protects the system against water hammer action.

The operating parameters, like proportional or constant differential pressure and constant speed, can be easily viewed and set on the user-friendly display. Synchronous motor with permanent magnet rotor. Flanged in-line suction and delivery ports.

The circulator is WRAS-certified. Possibility of remote control with the DConnect service (DConnect Box supplied separately).

Construction Features Of The Pump

Compact circulation pump with bronze hydraulic body. Flanged in-line suction and delivery ports. Technopolymer impeller.

Construction Features Of The Motor

Synchronous electric motor with wet rotor at permanent magnet. Hardened stainless steel motor shaft mounted on ceramic bushings lubricated by the pumped liquid. Aluminum motor casing.

Construction Features Of The Electronics

 Greyscale OLED display with four keys on the body for configuration. Circulator status notification LED, alarm LED. The electronics also enables the variable frequency drive function and, therefore, permits greater energy efficiency and protect from water hammering effects. Operating parameters: proportional or constant differential pressure, constant speed.

More Information
Price £1,861.80
Manufacturer Dab
Warranty 1 year warranty
Electrical supply 240V
AC Power Single Phase
Flow Rate 300 Ltr/min
Max Head 12m
Water type Clean or Discoloured
Pump Type Circulator Pump
Duty Type Commercial
Submersible vs Surface Mounted Surface Mounted
Next Day Delivery No
Connection Size DN32 Flanged
Connection Type Flanged
Manufacturers Part Number 60151163
