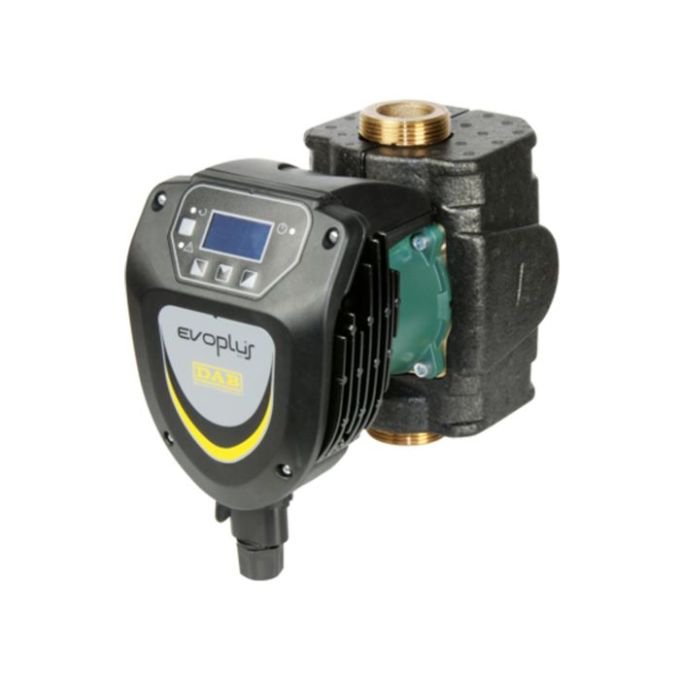

DAB EVOPlus 80/180 SAN M Circulator Pump - 240v - Single Phase - 133 Ltr/min

Part Number:
60151146
This item is now obsolete. Please view our alternatives below.
£1,258.10 RRP £1,006.46 £838.72

Free Delivery Over £50

Wet rotor electronic circulator designed for the circulation of drinkable hot water in residential building service and commercial building service. Possibility of remote control with the DConnect service, the DConnect Box is supplied separately.
1 year warranty With This Product

Wet rotor electronic circulator designed for the circulation of drinkable hot water in residential building service and commercial building service. Possibility of remote control with the DConnect service, the DConnect Box is supplied separately.

Construction Features Of The Pump

 Bronze hydraulic part. In-line suction and delivery ports. Technopolymer impeller.

Construction Features Of The Motor

 Synchronous electric motor with wet rotor and permanent magnet. Hardened stainless steel motor shaft mounted on ceramic bushings lubricated by the pumped liquid. Aluminum motor casing.

Construction Features Of The Electonics

 Greyscale OLED display with four keys, a circulator status notification LED and an alarm LED. It is equipped with an integrated variable frequency drive to ensure better all-round performance and energy efficiency and also to protect the system against water hammer action. It enables connection to management systems with the ModBus protocol using a multi-function module.

Connection to control systems via external signal 0-10 v is possible or with PWM and connection to ModBus system management systems, LonBus with special additional communication module.

More Information
Price £838.72
Manufacturer Dab
Warranty 1 year warranty
Electrical supply 240V
AC Power Single Phase
Flow Rate 133 Ltr/min
Max Head 8m
Water type Clean or Discoloured
Pump Type Circulator Pump
Duty Type Commercial
Submersible vs Surface Mounted Surface Mounted
Next Day Delivery No
Connection Size 1 1/2" Threaded
Connection Type Threaded
Manufacturers Part Number 60151146
