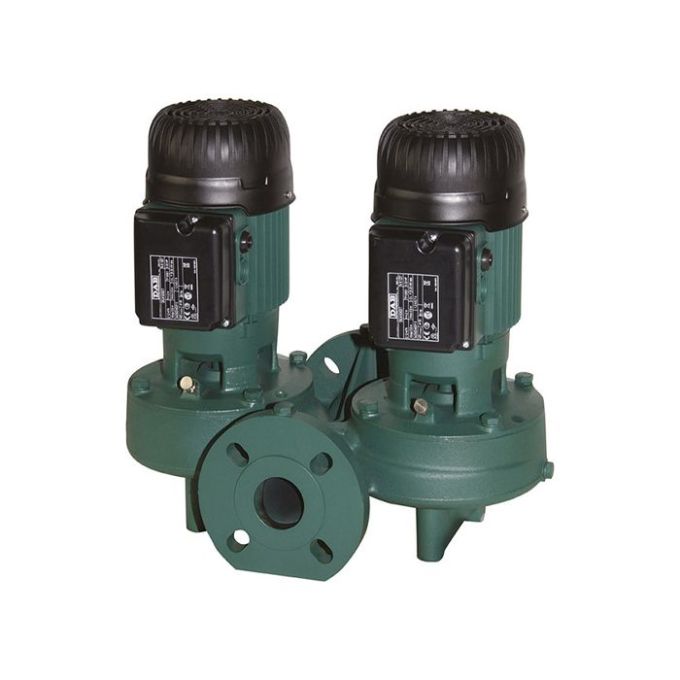

DAB DKLP 80-1200 T IE3 Twin Head In-Line Circulator Pump - 415v - Three Phase - 1534 Ltr/min
![135 135](https://www.pumpsalesdirect.co.uk/media/amasty/shopby/option_images/slider/Dab-Attribute-Logo.jpg)
Free Delivery Over £50
Applications
Hot or cold water circulation pump with in-line ports, suitable for installation directly on the pipework of civil and industrial heating, air conditioning, refrigeration, and sanitary water systems.
Construction Features Of The Pump
Pump body and motor support in cast iron.
PN 10 flanged suction and delivery ports with threaded holes for control manometers. To make replacement in existing systems easier, the pump can accept PN 6 counter flanges.
Technopolymer impeller. Carbon/ceramic mechanical seal.
The pumps are available both in the single (KLM-KLP) and in the twin (DKLM-DKLP) versions.
For the twin version a built in clapet valve in the delivery port is also included, to avoid water recirculation when the unit is idle. A blind flange is also supplied as a standard, to be used during maintenance of one of the two motors.
The twin version gives the possibility of alternating the operation of the pumps when a backup unit is required, or to have the two pumps operating simultaneously.
Construction Features Of The Motor
External ventilation cooling, closed, asynchronous type, with four poles for the KLM and DKLM versions, and two poles for the KLP and DKLP versions.
Rotor running on permanently lubricated ball bearings, oversized to ensure low noise and durability.
Standard built-in thermo-amperometric protection. Capacitor permanently fitted on single phase versions.
For the protection of the three-phase motor, we recommend the use of remote overload cut-outs, in compliance with current local regulations.
Construction according to CEI 2-3.
Protection class: IP 55
Insulation class: F
Standard voltage: single-phase 220-240 V, 50 Hz - three-phase 230/400 V, 50 Hz
Price | £3,064.99 |
---|---|
Manufacturer | Dab |
Warranty | 1 year warranty |
Electrical supply | 400V |
AC Power | Three Phase |
Flow Rate | 1534 Ltr/min |
Max Head | 67m |
Water type | Clean or Discoloured |
Pump Type | Circulator Pump |
Duty Type | Commercial |
Submersible vs Surface Mounted | Surface Mounted |
Next Day Delivery | No |
Manufacturers Part Number | 60179926 |
