DAB Aquajet 82 M-G Booster Set - 240v - Single Phase - 90 Ltr/min

Part Number:
60121345
This item is now obsolete. Please view our alternatives below.
£602.40 RRP £481.92 £401.60

Free Delivery Over £50

Automatic water lifting sets, particularly suitable for domestic use, small installations for civil, industrial and agricultural use, washing systems and hobbies.
1 year warranty With This Product

Suitable Applications

Automatic water lifting sets, particularly suitable for domestic use, small installations for civil, industrial and agricultural use, washing systems and hobbies.

These are characterised by the use of JET self-priming electropumps which can operate even when there is air, gas and small quantities of sand in the water.

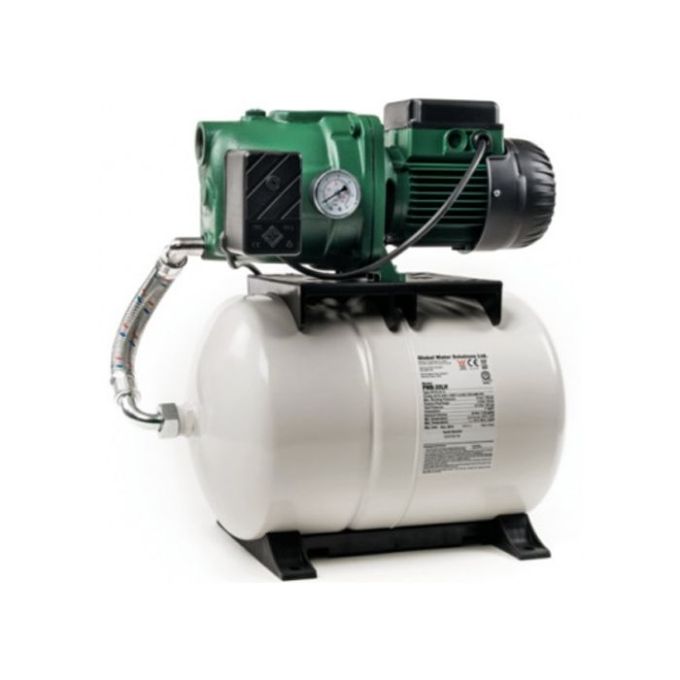

The set is composed of a diaphragm tank with capacity 20 litres, pressure switch for automatic operation, pressure gauge, JET electropump complete with power cable and plug, kit for coupling the pump and the tank, all assembled and ready for installation.

Construction Features Of The Pump

Die-cast aluminium pump body and motor support. Technopolymer impeller, diffuser, Venturi tube and sand guard. Stainless steel pressure discs. Carbon/ceramic mechanical seal.

Construction Features Of The Motor

Induction motor, closed and cooled with external ventilation. Rotor mounted on oversized greased sealed-for-life ball bearings to ensure silent running and long life. Built-in thermal and current overload protection and a capacitor permanently in circuit. Manufactured according to CEI 2-3 and CEI 61-69 standards (EN 60335-2-41). Motor protection: IP44 Terminal box protection: IP55 Insulation class: F

Construction Features Of The Tank

Horizontal type, capacity 20 litres, with butyl diaphragm, complete with feet on the bottom and brackets for fixing the pump on top.

More Information
Price £401.60
Manufacturer Dab
Warranty 1 year warranty
Electrical supply 240V
AC Power Single Phase
Capacity 20Ltr
Flow Rate 90 Ltr/min
Max Head 61m
Water type Clean or Discoloured
Duty Type Domestic
Submersible vs Surface Mounted Surface Mounted
Pump Type Booster Set
Next Day Delivery No
Manufacturers Part Number 60121345
