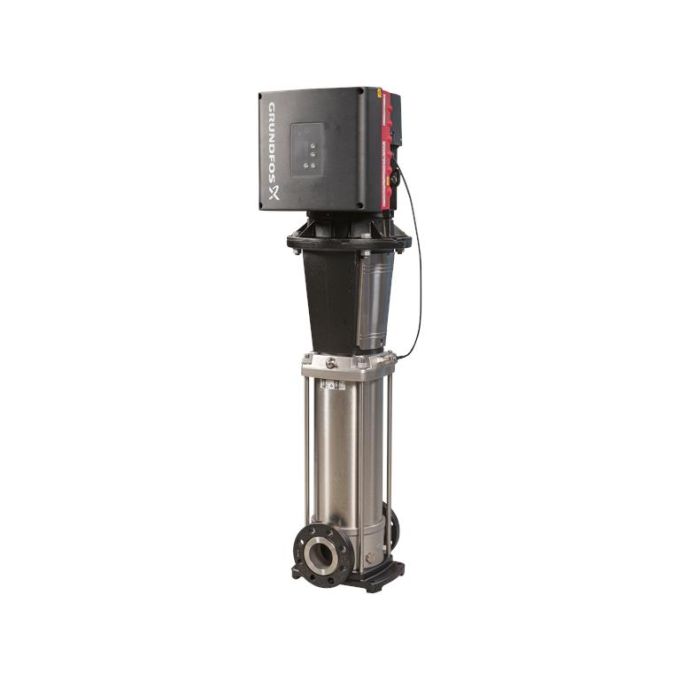

Grundfos CRNE32-1-1 N-F-A-E-HQQE Vertical Multistage Pump - 400v - Three Phase - 600 Ltr/min

Part Number:
98390936
This item is now obsolete. Please view our alternatives below.
£6,810.00 RRP £4,767.00 £3,972.50

Free Delivery Over £50

Vertical, multistage centrifugal pump with integrated frequency converter. Pump materials in contact with the liquid are in high-grade stainless steel (EN 1.4401)
1 year warranty With This Product

CRNE 32-1-1 N-F-A-E-HQQE

Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in high-grade stainless steel. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via DIN flanges. The pump is fitted with a 3-phase, fan-cooled, permanent-magnet, synchronous motor. The motor efficiency is classified as IE5 in accordance with IEC 60034-30-2. The motor includes a frequency converter and PI controller in the motor terminal box. This enables continuously variable control of the motor speed, which again enables adaptation of the performance to a given requirement. An operating panel on the motor terminal box enables setting of required setpoint as well as setting of pump to "Min." or "Max." operation or to "Stop". The Grundfos Eye indicator on the operating panel provides visual indication of pump status:

  • "Power on": Motor is running (rotating green indicator lights) or not running (permanently green indicator lights)
  • "Warning": Motor is still running (rotating yellow indicator lights) or has stopped (permanently yellow indicator lights)
  • "Alarm": Motor has stopped (flashing red indicator lights).

Communication with the pump is possible by means of Grundfos GO Remote (accessory). The remote control enables further settings as well as reading out of a number of parameters such as "Actual value", "Speed", "Power input" and total "Power consumption". The terminal box has a number of inputs and outputs enabling the motor to be used in advanced applications where many inputs and outputs are required:

  • two dedicated digital inputs
  • three analog inputs, 0(4)-20 mA, 0-5 V, 0-10 V, 0.5 - 3.5 V; the factory-fitted pressure sensor is connected to one of these inputs
  • 5 V voltage supply to potentiometer and sensor
  • one analog output, 0-10 V, 0(4)-20 mA
  • two configurable digital inputs or open-collector outputs
  • two Pt100/Pt1000 inputs
  • LiqTec, dry-running protection sensor input
  • Grundfos Digital Sensor input and output
  • 24 V voltage supply for sensors
  • two signal-relay outputs (potential-free contacts)
  • GENIbus connection
  • interface for Grundfos CIM fieldbus module.
More Information
Price £3,972.50
Manufacturer Grundfos
Warranty 1 year warranty
Impeller Type Vertical multistage
Impeller Stages 1
Electrical supply 400V
AC Power Three Phase
Flow Rate 600 Ltr/min
Max Head 21.5 m
Water type Clean or Discoloured
Pump Type Multistage
Duty Type Commercial
Submersible vs Surface Mounted Surface Mounted
Next Day Delivery No
Manufacturers Part Number 98390936
