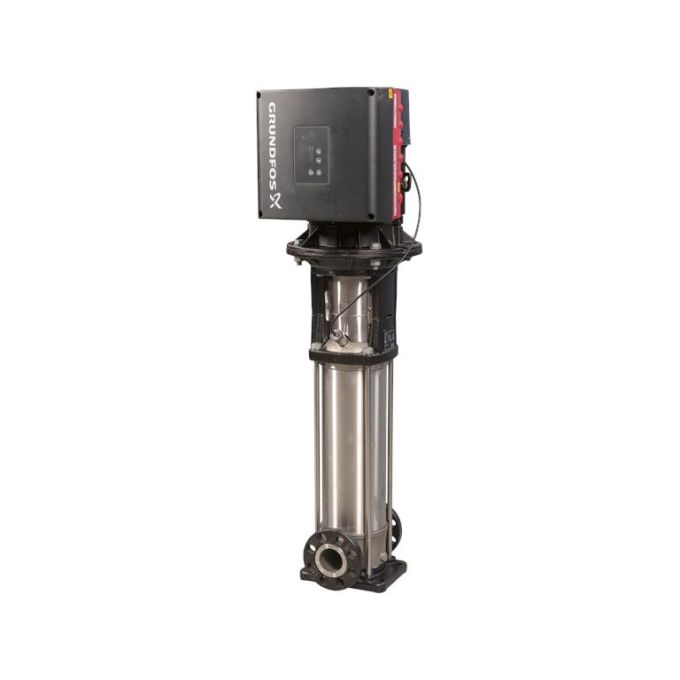

Grundfos CRNE3-4 N-FGJ-A-E-HQQE Vertical Multistage Pump - 400v - Three Phase - 58 Ltr/min
This item is now obsolete. Please view our alternatives below.
Free Delivery Over £50
1 year warranty With This Product
CRNE 3-4 N-FGJ-A-E-HQQE
Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in high-grade stainless steel. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via combined DIN-ANSI-JIS flanges. The pump is fitted with a 3-phase, fan-cooled, permanent-magnet, synchronous motor. The motor efficiency is classified as IE5 in accordance with IEC 60034-30-2. The motor includes a frequency converter and PI controller in the motor terminal box. This enables continuously variable control of the motor speed, which again enables adaptation of the performance to a given requirement. An operating panel on the motor terminal box enables setting of required setpoint as well as setting of pump to "Min." or "Max." operation or to "Stop". The Grundfos Eye indicator on the operating panel provides visual indication of pump status:
|
Communication with the pump is possible by means of Grundfos GO Remote (accessory). The remote control enables further settings as well as reading out of a number of parameters such as "Actual value", "Speed", "Power input" and total "Power consumption". The terminal box has a number of inputs and outputs enabling the motor to be used in advanced applications where many inputs and outputs are required:
|
| Price | £1,902.60 |
|---|---|
| Manufacturer | Grundfos |
| Warranty | 1 year warranty |
| Impeller Type | Vertical multistage |
| Impeller Stages | 4 |
| Electrical supply | 400V |
| AC Power | Three Phase |
| Flow Rate | 58 Ltr/min |
| Max Head | 37.9 m |
| Water type | Clean or Discoloured |
| Pump Type | Multistage |
| Duty Type | Commercial |
| Submersible vs Surface Mounted | Surface Mounted |
| Next Day Delivery | No |
| Manufacturers Part Number | 98389973 |
