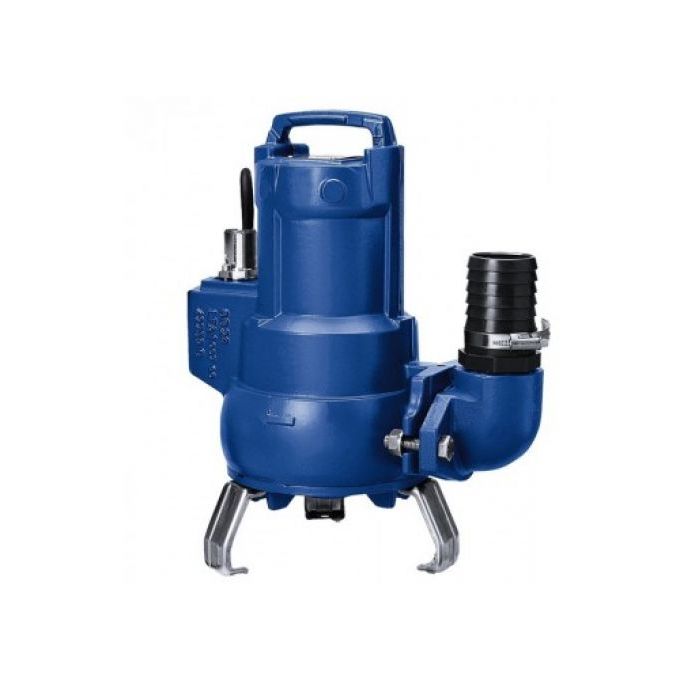

KSB Ama Porter 503 NE Submersible Drainage Pump - Single Phase - No Float Switch
Free Delivery Over £50
A vertical single-stage fully floodable submersible waste water pump in close-coupled design (grey cast iron variant), non-explosion-proof.
Suitable for handling waste water, especially waste water containing long fibres and solid substances, fluids containing gas/air, removing waste water from flooded rooms or surfaces.
High operating reliability even under tough operating conditions, due to generously sized motor, thermal overload protection by temperature switch integrated in the winding, and encapsulated, watertight motor design.
Safe connection Plug-type connector, polarized to prevent incorrect insertion.
Service-friendly right down to details: wetted bolts made of stainless steel. Easy to dismantle, even after years of operation.
Easy installation and removal Automatic, bolt-free connection for stationary installation; leakage prevented by flexible sealing.
Trouble-free operation Clogging by coarse particles is prevented by
■ large passage (free-flow impeller “F”)
■ by cutter with high mechanical resistance for waste water (cutter “S”)
Long service life thanks to shaft made of corrosion-resistant stainless steel and bi-rotational mechanical seal with special SiC/Al2 O3 contact faces.
Installation Kit Not Included
Price | £806.00 |
---|---|
Manufacturer | KSB |
Warranty | 1 year warranty |
Electrical supply | 230V |
AC Power | Single Phase |
Flow Rate | 283 Ltr/min |
Pump Operation | Manual (without float switch) |
Water type | Dirty Water |
Pump Type | Submersible |
Switch | None |
Duty Type | Domestic |
Submersible vs Surface Mounted | Submersible |
Next Day Delivery | No |
Manufacturers Part Number | 39017578 |
